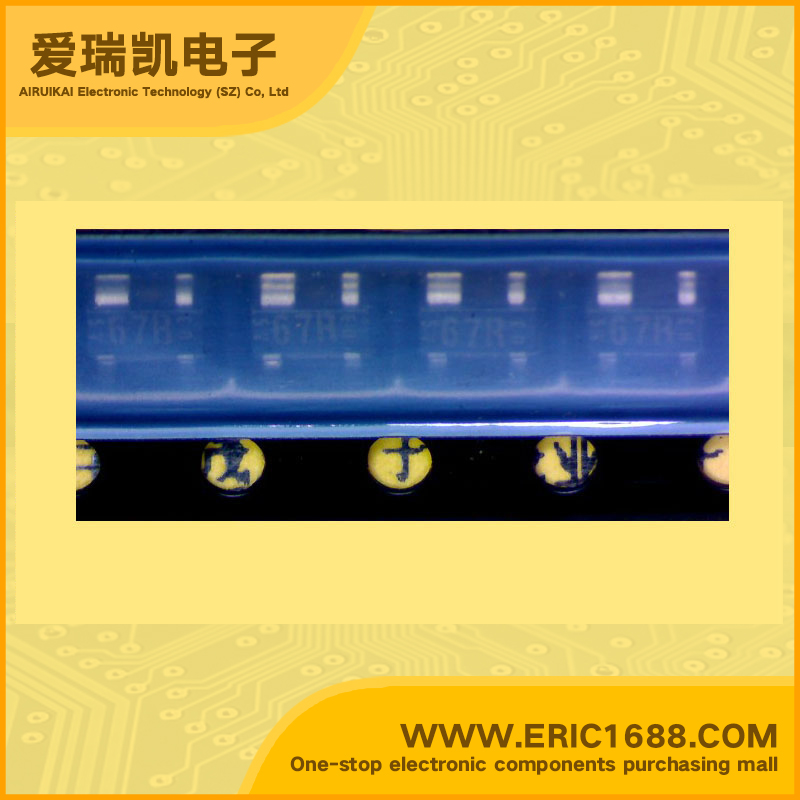

BFP67R NPN三极管 20V 50mA 7.5Ghz 65~150 400mV/0.4V SOT-143 marking/标记 67R 低噪声小信号放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 10V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 7.5Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 65~150 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon Planar RF Transistor Features • Small feedback capacitance • Low noise figure • High transition frequency • Lead (Pb)-free component • Component in accordance to RoHS Applications Low noise small signal amplifiers up to 2 GHz. Thistransistor has superior noise figure and associated gain performance at UHF, VHF and microwave frequencies. |
| 描述与应用 | NPN硅平面RF晶体管 特点 •小反馈电容 •低噪声系数 •高转换频率 •铅（Pb）免费组件 •组件按照RoHS 应用 低噪声小信号放大器高达2 GHz。 Thistransistor具有超强的UHF，VHF和微波频率的噪声系数和相关增益性能。 |
| 规格书PDF |
