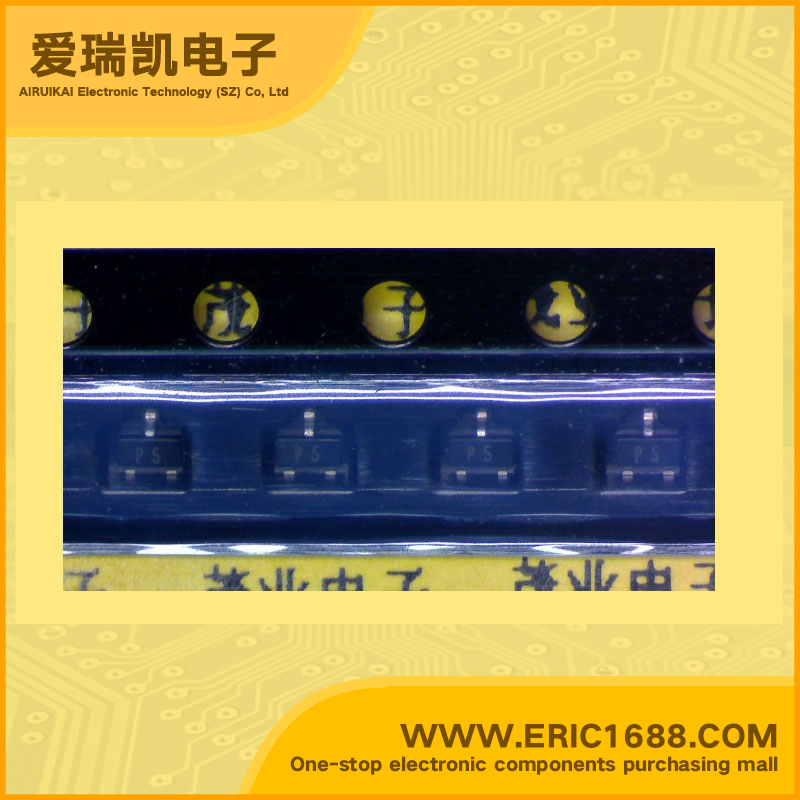

RCLAMP0502B 瞬态抑制二极管TVS/ESD 5V 5A SOT-523 标记P5
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5V |
| 反向击穿电压VBRBreakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 125W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 5A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | FEATURES •Ultra-Low Capacitance TVS for ESD and CDE Protection •Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) •Designed to replace polymer TVS •Protects up to two I/O lines •Ultra-Low capacitance (<1pF) •No insertion loss to •Low profile (<1mm) •Low leakage current and clamping voltage •Low operating voltage: 5.0V •Solid-state silicon-avalanche technology |
| 描述与应用 | 特性 •超低电容TVS ESD和CDE保护 •瞬态保护高速数据线 IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） •旨在取代聚合物电视 •保护两个I / O线 •超低电容（<1pF的） •没有插入损耗 •薄型（小于1mm） •低漏电流和钳位电压 •低工作电压：5.0V •固态硅雪崩科技 |
| 规格书PDF |
