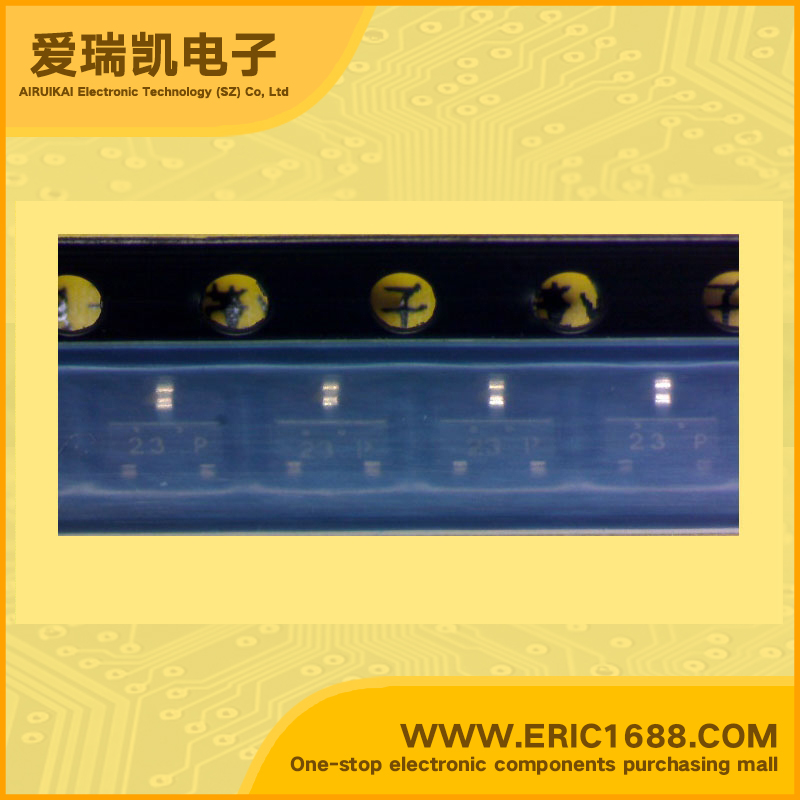

MMBT3646 NPN三极管 40V 300mA/0.3A 15~120 200mV~300mV SOT-23/SC-59 marking/标记 23 开关晶体管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 300mA/0.3A |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | 15~120 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 200mV~300mV |
| 耗散功率PcPower Dissipation | |
| Description & Applications | Switching Transistor |
| 描述与应用 | 开关晶体管 |
| 规格书PDF |
