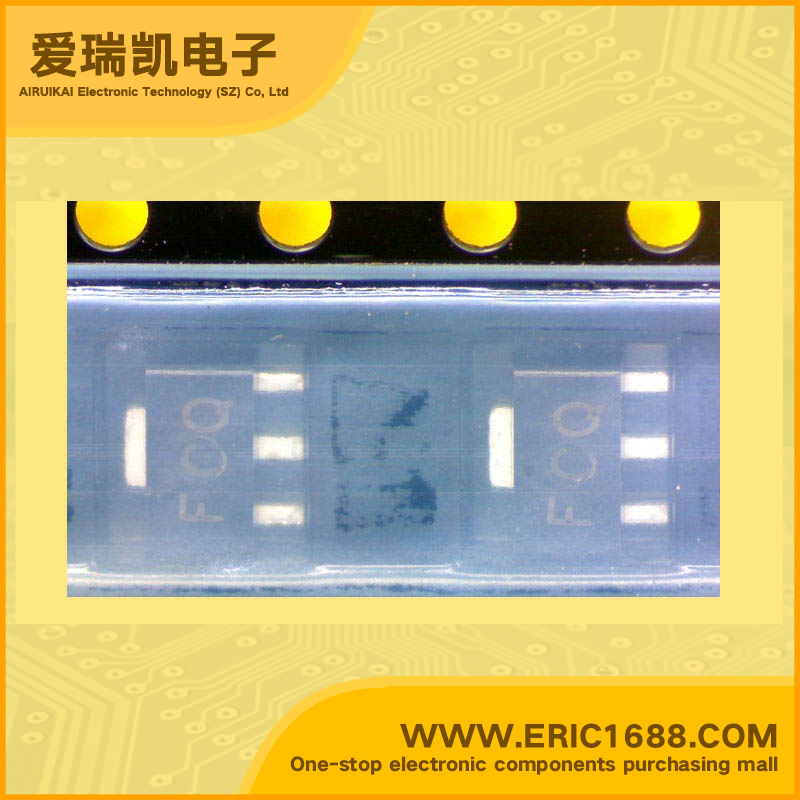

FJC1963QTF NPN三极管 50V 3A 120~270 450mV/0.45V SOT-89 marking/标记 FQ 音频功率放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 30V |
| 集电极连续输出电流ICCollector Current(IC) | 3A |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | 120~270 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 450mV/0.45V |
| 耗散功率PcPower Dissipation | 500mW/0.5W |
| Description & Applications | Audio Power Amplifier Applications Complement to FJC1308 High Collector Current Low Collector-Emitter Saturation Voltage |
| 描述与应用 | 音频功率放大器应用 补充FJC1308 高集电极电流 低集电极 - 发射极饱和电压 |
| 规格书PDF |
