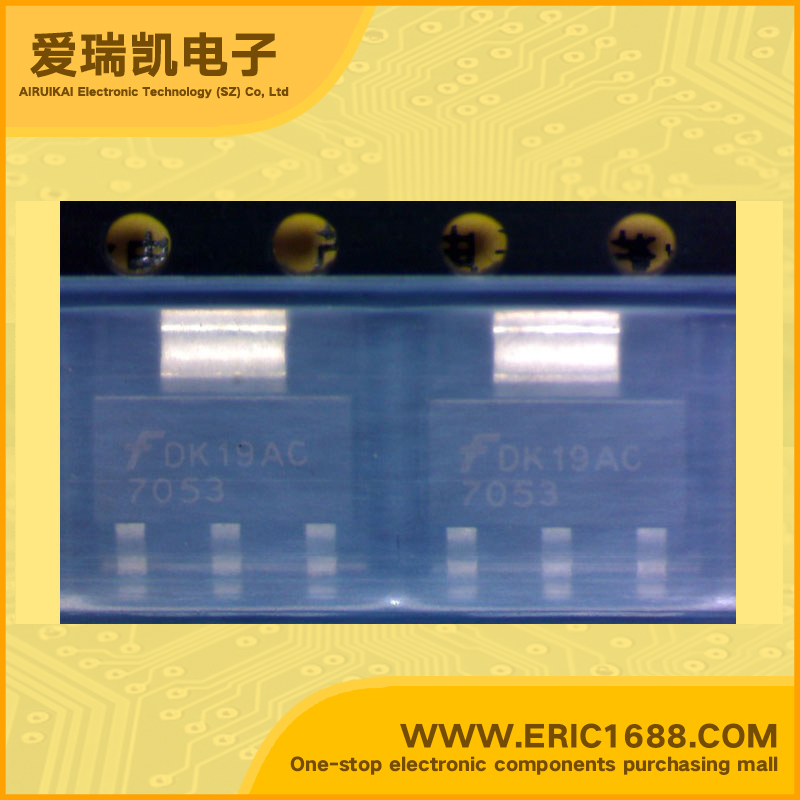

达林顿三极管 NZT7053 NPN 1.5A 100V SOT-223 markign/标记7053 开关 功率放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-EmitterVoltage(VCEO) | 100V |
| 集电极连续输出电流ICCollector Current(IC) | 1.5A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 10000 @ 5V,0.1A |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | 1.5V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | • This device is designed for applications requiring extremely high current gain at collector currents to 1.0 A. |
| 描述与应用 | •为需要集电流增益可达到1A而设计 |
| 规格书PDF |
