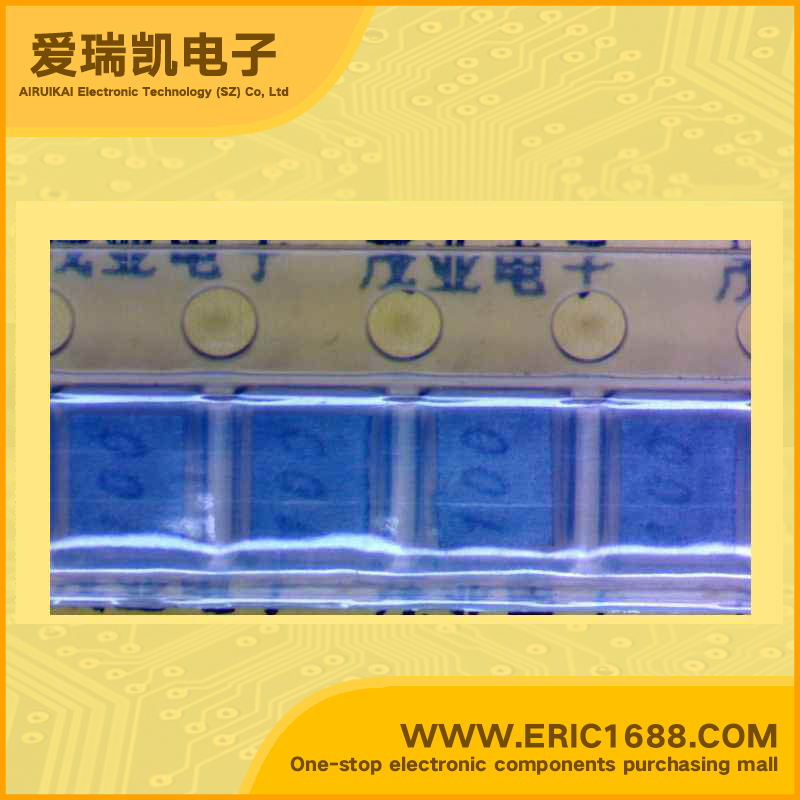

小功率电感 NLCV32T-100K-PF 10UH 3225-100K
| 电感值Inductance | 10UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 450mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 15 @ 2.52MHz |
| 自振谐频率SRFFrequency - Self Resonant | 30MHz |
| DC电阻DCRDC Resistance (DCR) | 0.36Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | NLCV Series NLCV32 FEATURES • This is a renewed version of NLC322522. • The product has good heat durability that withstands lead-free compatible reflow soldering conditions. • Lead-free material is used for the plating on the terminal • The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. • The product uses metal terminals, which realize excellent connection reliability. • Highly heat resistant thermoplastic resin is used to form the exterior package. • From 1.0µH to 330µH, all of the products are available. • This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available. |
| 描述与应用 | NLCV系列NLCV32 特点 这是一个新版本NLC322522。 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料是用于终端上的镀敷 电气特性，可靠性，形状和焊垫的形状是与前NL系列相同的。 该产品采用金属终端，实现良好的连接可靠性。 高耐热性的热塑性树脂。 从1.0μH到330μH。 本产品符合RoHS指令。 |
