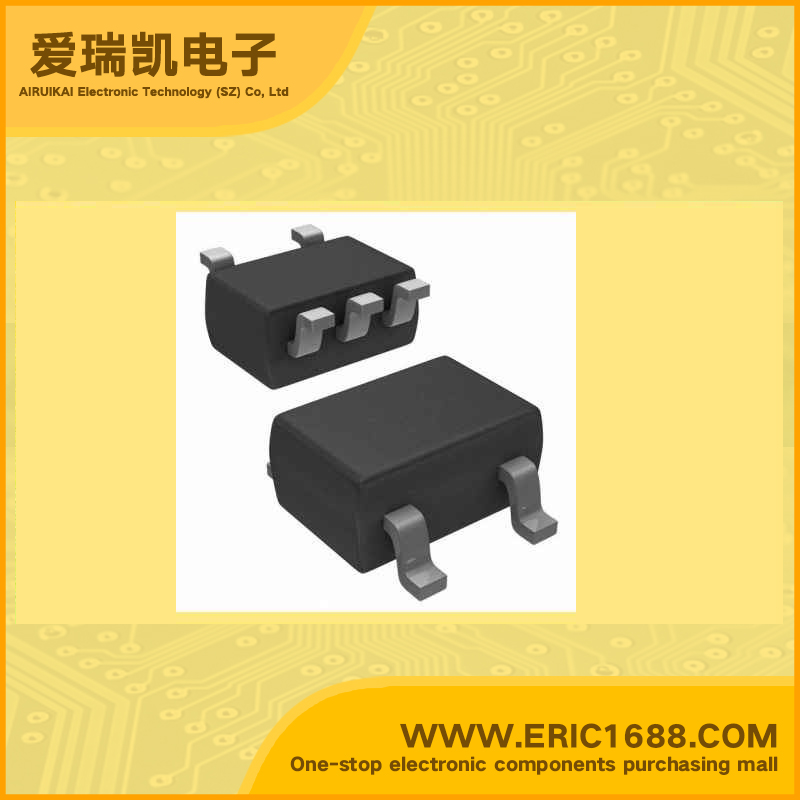

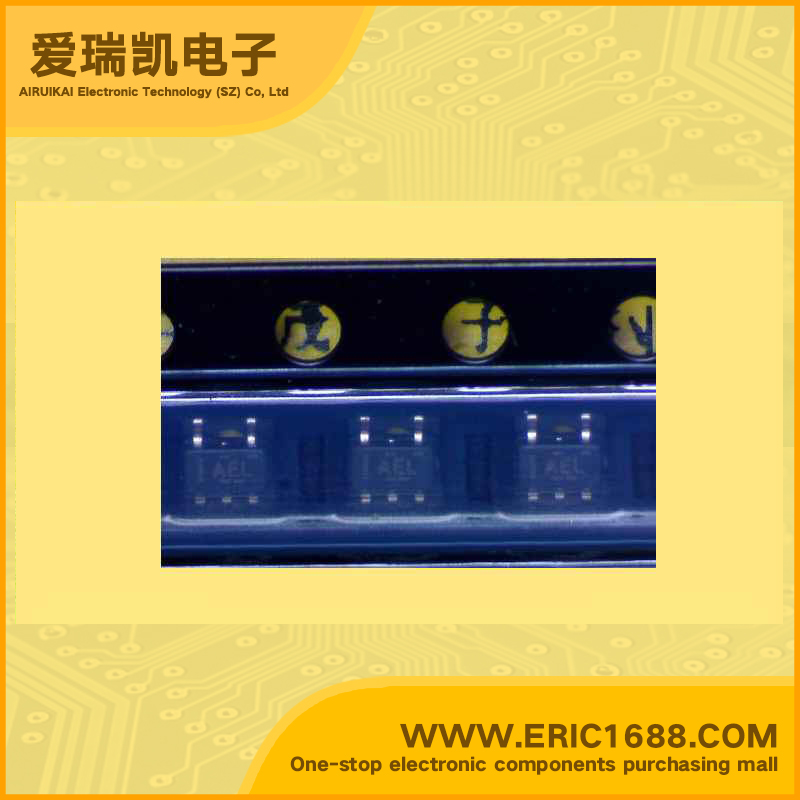

集成电路IC 与门 SN74AHC1G08DCK3 SOT-353/SC70-5/SC-88A marking/标记 AEY
| 逻辑类型Logic Type | 与门 AND Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2v~5.5v |
| 静态电流IqCurrent - Quiescent (Max) | 10uA |
| 输出高，低电平电流Current - Output High, Low | -8mA,8mA |
| 低逻辑电平Logic Level - Low | 0.5v~1.65v |
| 高逻辑电平Logic Level - High | 1.5v~3.85v |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 5.8ns @ 5V，50pF |
| Description & Applications | SINGLE 2-INPUT POSITIVE-AND GATE ；Operating Range of 2 V to 5.5 V Max tpd of 7 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101) |
| 描述与应用 | 单路2输入正与门;2 V至5.5 V的工作范围 最大5 V时为7 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V？ 施密特触发器动作在所有输入使？ 电路容错输入较慢的上升和下降时间 闭锁性能超过250 mA每 JESD17 ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 200-V机型号（A115-A） - 1000-V带电器件模型（C101） |
