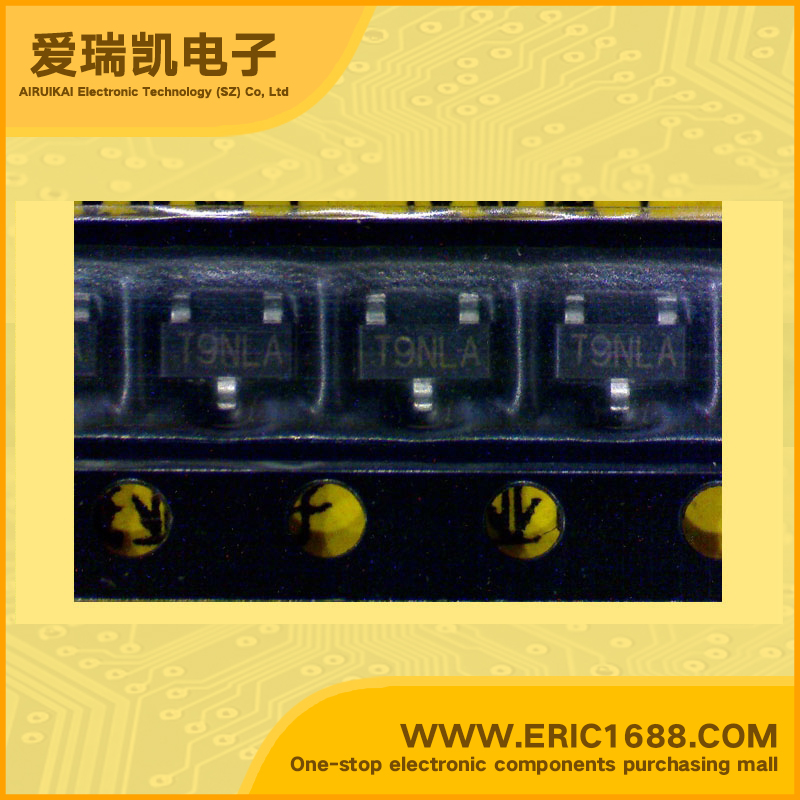

SST4119 N沟道结型场效应管 40v 0.2~0.6mA SOT-23 marking/标记 T9NLA 超高输入阻抗
| 最大源漏极电压VdsDrain-Source Voltage | 40v |
| 栅源极击穿电压V(BR)GSGate-Source Voltage | -40v |
| 漏极电流(Vgs=0V)IDSSDrain Current | 0.2~0.6ma |
| 关断电压Vgs(off)Gate-Source Cut-off Voltage | -2~-6v |
| 耗散功率PdPower Dissipation | 350mW/0.35W |
| Description & Applications | •N–Channel JFETs •Ultra-Low Leakage: 0.2 pA •Very Low Current/Voltage Operation •Ultrahigh Input Impedance •Low Noise |
| 描述与应用 | •N沟道JFETs •超低漏？？0.2 pA的 •非常低的电流/电压操作 •超高输入阻抗 •低噪声 |
