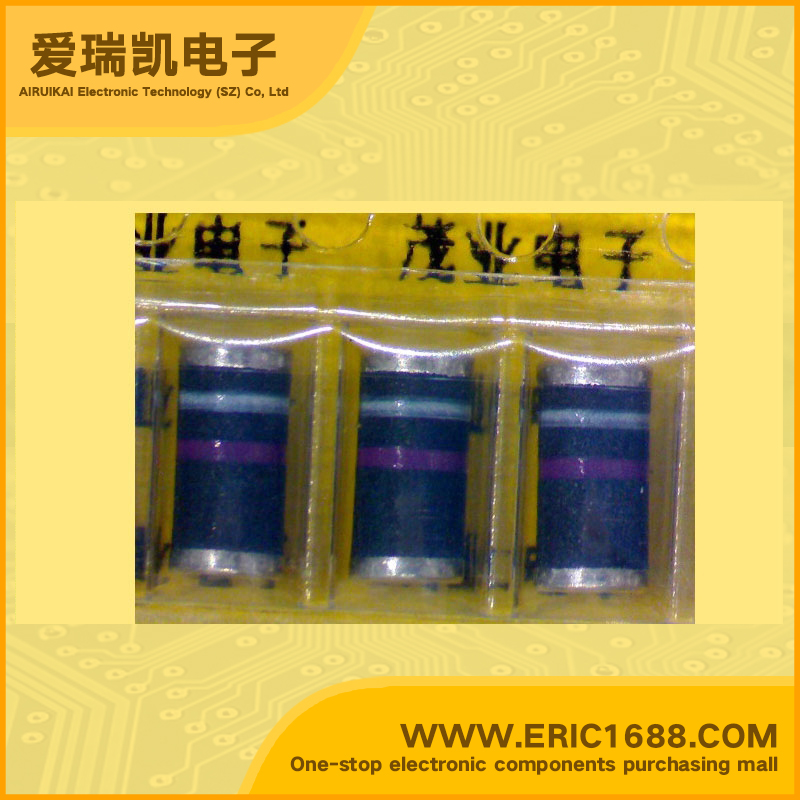

BYM10-1000-E3/96 整流二极管 1A 1000V DO-213AB
| 反向电压VrReverse Voltage | 1000V |
| 平均整流电流IoAverAge Rectified Current | 1A |
| 最大正向压降VFForward Voltage(Vf) | 1.15V |
| 反向恢复时间TrrReverse Recovery Time | 4μS |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER • Low profile package • Ideal for automated placement • Controlled avalanche characteristics • Glass passivated junction • Low reverse current • High surge current capability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Solder dip 260 °C, 40 s • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC |
| 描述与应用 | 表面贴装玻璃钝化结整流器 •薄型包装 •适合自动放置 •控制雪崩特性 •玻璃钝化结 •低反向电流 •高浪涌电流能力 •会见MSL每1，J-STD-020，LF最大 峰值260℃ •浸焊260°C，40秒 •符合RoHS指令2002/95/EC和 根据WEEE 2002/96/EC |
| 规格书PDF |
