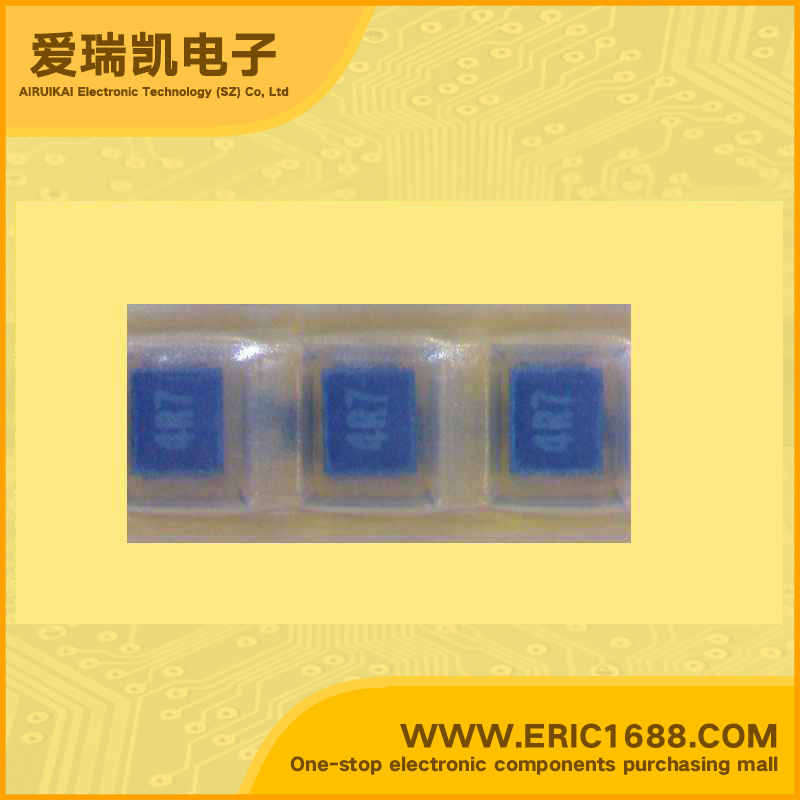

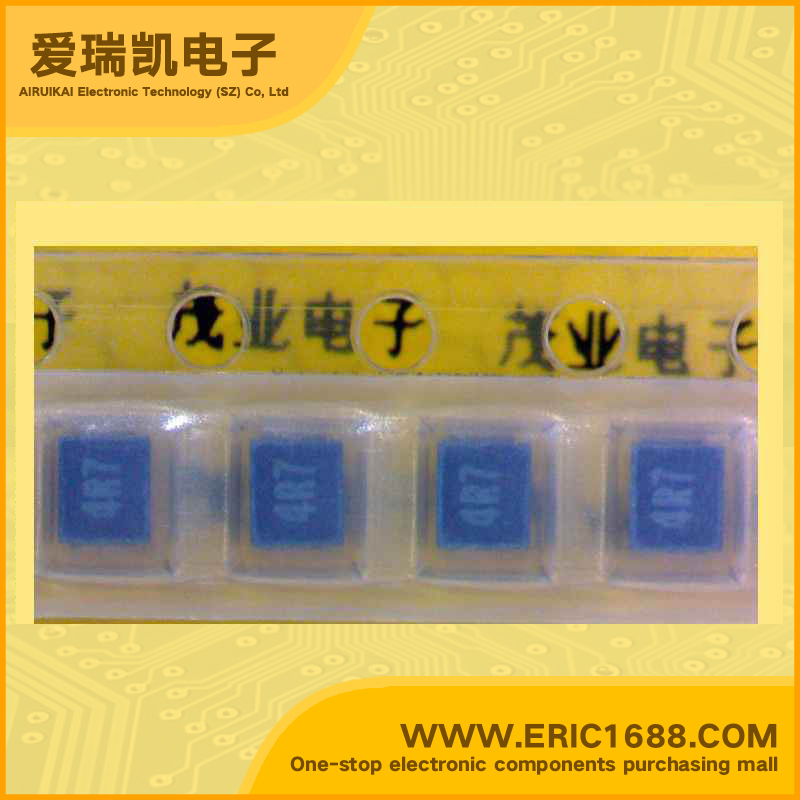

小功率电感 NLC252018T-4R7M 4.7UH 2520-4R7m 4R7
| 电感值Inductance | 4.7UH |
| 误差Tolerance | ±20% |
| 额定电流Current Rating | 285mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 20 @ 7.96MHz |
| 自振谐频率SRFFrequency - Self Resonant | 43MHz |
| DC电阻DCRDC Resistance (DCR) | 0.8Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | NLC Series NLC2520 Type FEATURES • The NLC series feature low DC resistance and high current handling capacities, making them ideal for power supply line applications. • They are available in ranging from 2520 to 5650 types. |
| 描述与应用 | NLC系列NLC2520类型 特点 NLC系列具有低直流电阻和高电流处理能力，使它们成为理想的电源线应用。 它们从2520到5650种不等。 |
| 规格书PDF |
