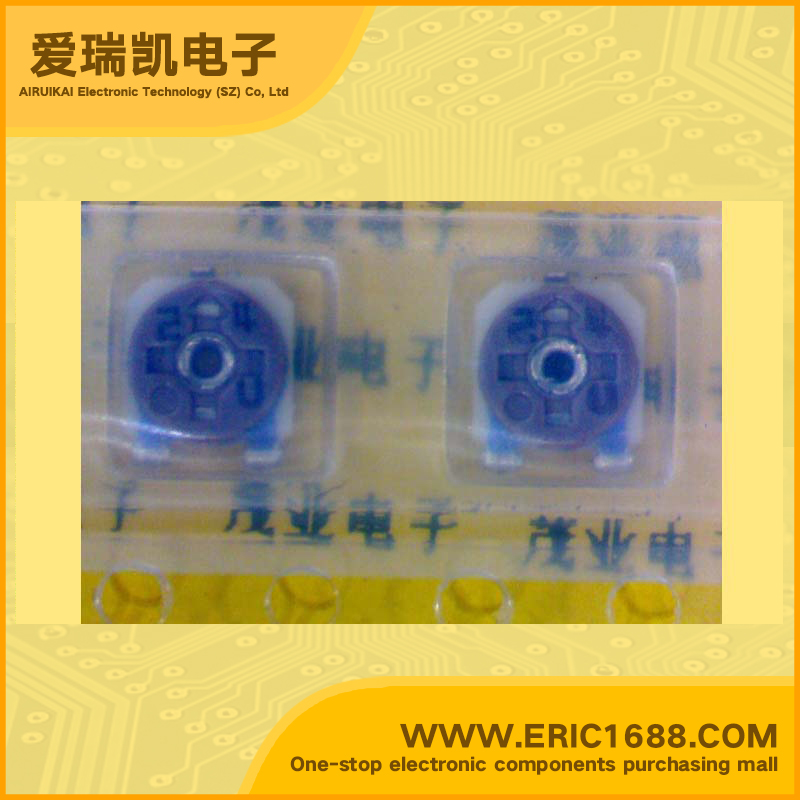

金属陶瓷贴片微调电位器RVG4M系列 RVG4M08-203VM-TG 20KΩ/Ohm 4X4-20K MARKING/标记 24
| 电阻值Resistance | 20KΩ/Ohm |
| 额定功率Power | 0.1W,1/10W |
| 容差Tolerance | ±25% |
| 温度系数Temperature Coefficient | ±250ppm/°C |
| 圈数Number of Turns | 单圈 Single |
| 调节类型Adjustment Type | 顶部调节 Top Adjustment |
| 端子类型Termination Style | J引线 J Lead |
| Description & Applications | Cermet Chip Trimmer Potentiometer RVG4M Series FEATURES 1. Available for flow and reflow soldering method while maintaining unique sealed construction. 2. Simple construction by 3 piece parts achieve high reliability. 3. Available for cleaning after soldering APPLICATIONS FDDs, HDDs, Measuring equipments, Encoders, Professional use cameras |
| 描述与应用 | 金属陶瓷贴片微调电位器RVG4M系列 特点 1。流量和回流焊接方法，同时保持独特的密封结构。 2。由3个部分的构造简单，实现了高可靠性。 3。可用于焊接后清洗 应用 软盘驱动器，硬盘驱动器，测量设备，编码器，专业 使用相机 |
| 规格书PDF |
