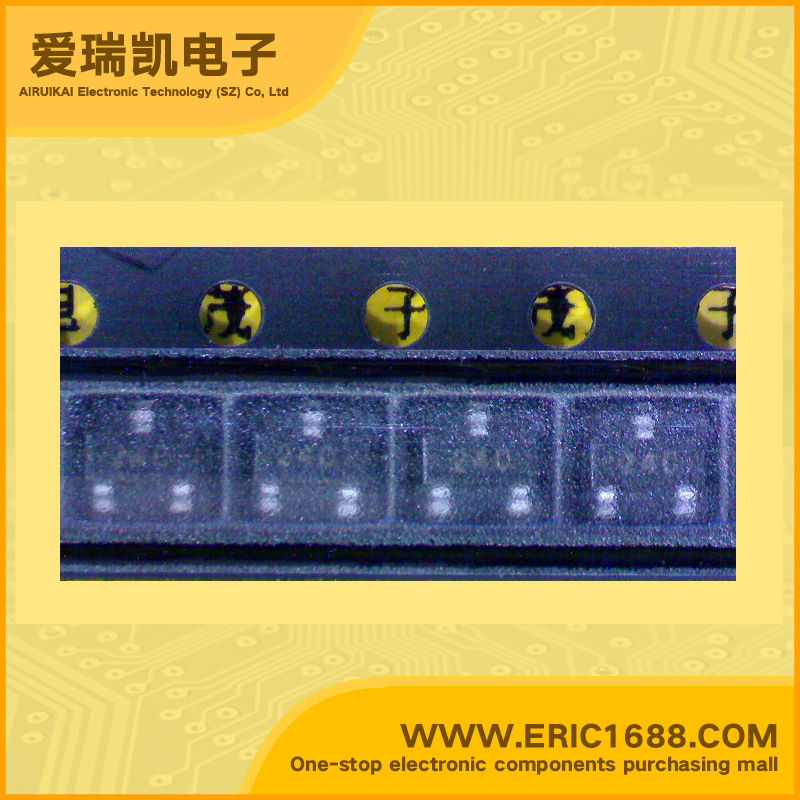

PSOT24C 瞬态抑制二极管TVS/ESD 24V 12A SOT-23-24V 标记24C
| 极性Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 24V |
| 反向击穿电压VBRBreakdown Voltage | 26.7V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 500W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 12A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | FEATURES • STANDARD CAPACITANCE TVS ARRAY • ESD Protection > 40 kilovolts • 500 Watts Peak Pulse Power per Line (tp = 8/20µs) • Low Clamping Voltage • Available in Multiple Voltage Types Ranging from 3V to 36V • Unidirectional & Bidirectional Configurations |
| 描述与应用 | 特性 •标准电容TVS阵列 •ESD保护>40千伏 •500瓦峰值脉冲功率线（TP =8/20μS） •低钳位电压 •多重从3V至36V电压类型 •单向及双向配置 |
| 规格书PDF |
