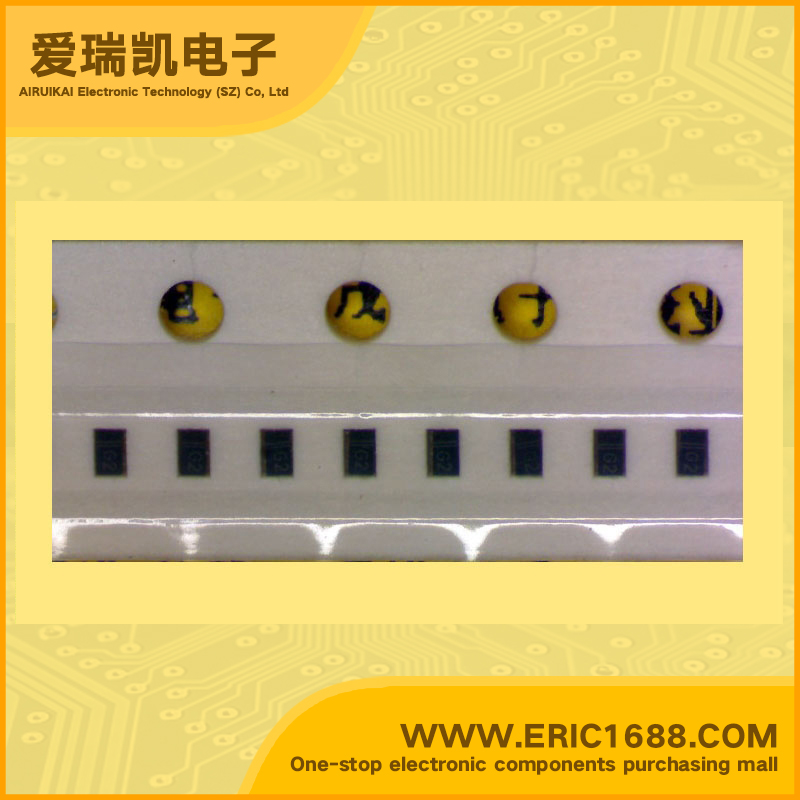

PESD5V0S1UL 瞬态抑制二极管TVS/ESD 5V 15A SOD882-5V 标记G2
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5V |
| 反向击穿电压VBRBreakdown Voltage | 6.4V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 150W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 15A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | Features •ESD protection diodes in a SOD882 package •Ultra small SMD plastic package •Ultra low leakage current: IRM < 700 nA •ESD protection of one line •ESD protection up to 30 kV •Max. peak pulse power: PPP = 150 W •IEC 61000-4-2; level 4 (ESD) •Low clamping voltage: VCL = 20 V •IEC 61000-4-5; (surge); IPP up to 15 A |
| 描述与应用 | 特性 •SOD882封装ESD保护二极管 •超小型SMD塑料包装 •超低漏电流：IRM<700 nA •一条线ESD保护 •高达30 kVESD保护 •最大峰值脉冲功率：Ppp=150 W •IEC61000-4-2第4级（ESD） •低钳位电压：VCL= 20V@ •IEC61000-4-5（浪涌）; Ipp15 |
| 规格书PDF |
