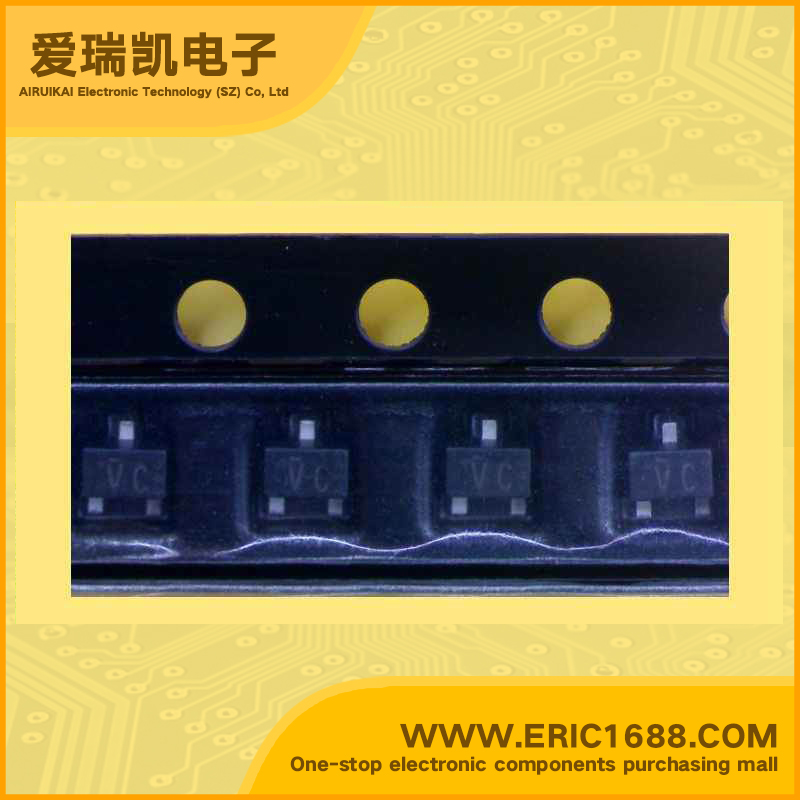

2SC3930GCL NPN三极管 30V 30mA 250MHz 110~220 SOT-323/SC-70 marking/标记 VC 射频放大 FM/AM收音机
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 30mA |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 110~220 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type For high-frequency amplification Complementary to 2SA1532 Optimum for RF amplification of FM/AM radios. High transition frequency fT S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 用于高频放大 A与2SA1532互补 最适用于射频放大FM/ AM收音机。 高转换频率FT。 S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
| 规格书PDF |
