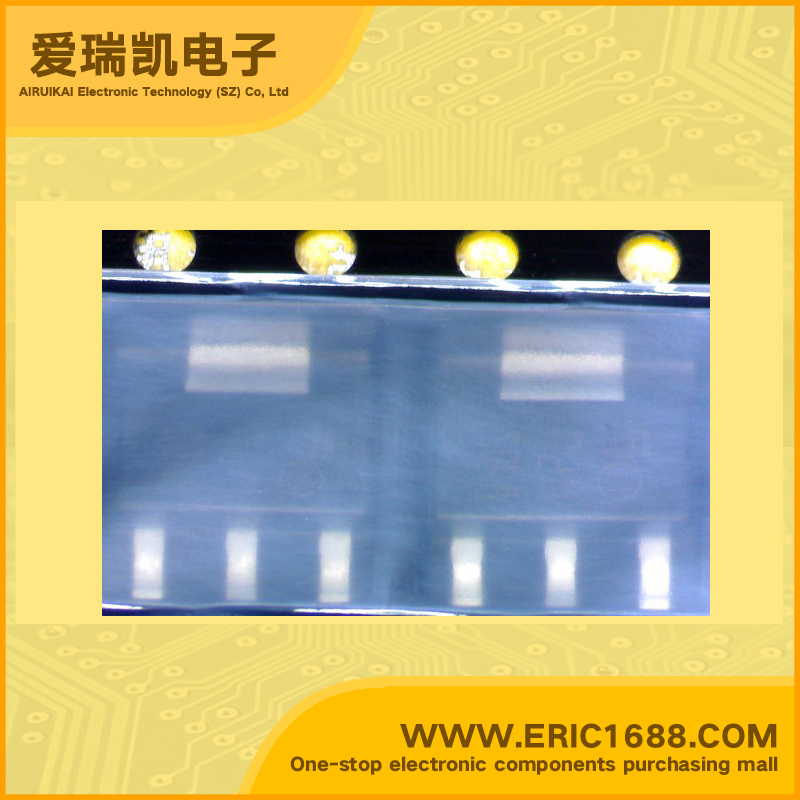

单向可控硅 P0102MN5AA4 0.8V 5mA SOT-223 marking/标记 P2M
| 反向重复峰值电压VRRM/断态重复峰值电压VDRMRepetitive peak reverse voltage/Repetitive peak off-state voltage | 600V |
| 通态平均电流IT(AV)Average on-state current | 0.5A |
| 通态最大电流IT(RMS)RMS on-state current | 0.8A |
| 栅极触发电压VGTGate trigger voltage | 0.8V |
| 栅极触发电流IGTGate trigger current | |
| 保持电流IHHolding current | 5mA |
| 峰值通态电压VTMOn-state voltage | 1.95V |
| 重复峰值断态电流IDRMRepetitive peak off-state current | 1μA |
| 浪涌电流ITSM(50Hz、60Hz)Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A |
| Description & Applications | Features Sensitive standard SCRs up to 0.8 A IT(RMS) up to 0.8 A VDRM/VRRM100, 200, 400 and 600 V IGT from 5 to 200 µA |
| 描述与应用 | 特点 敏感的标准高达0.8 A的可控硅 IT（RMS）0.8 A VDRM/VRRM100，200，400和600 V |
