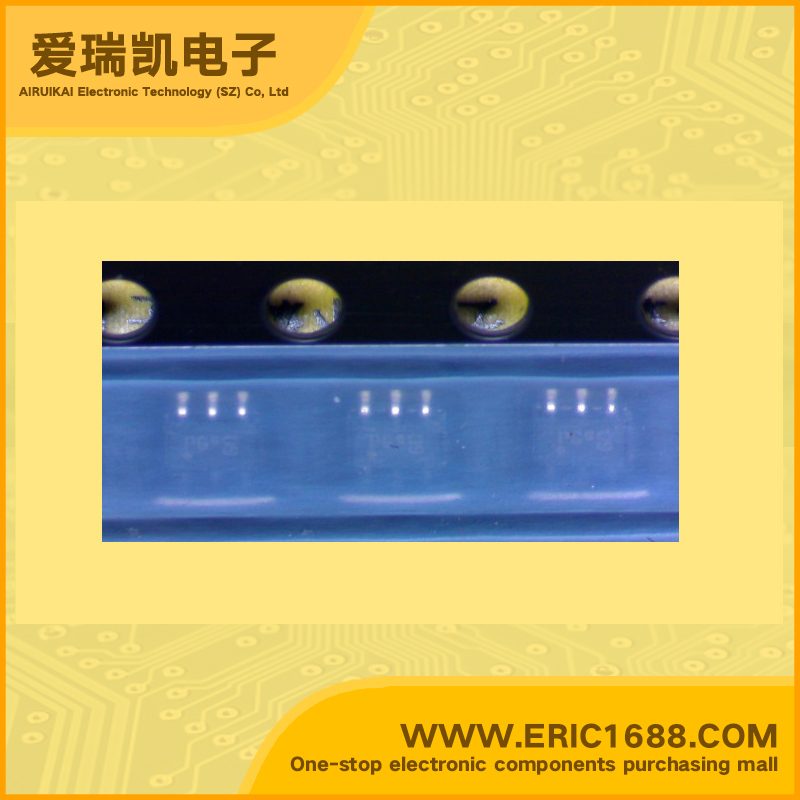

射频放大器 BGA428 SOT-363 marking/标记 PG
| 频率Frequency | 1.4GHz ~ 2.5GHz |
| P1dB | -19dBm |
| 增益Gain | 20dB |
| 噪声系数Noise Figure | 1.4dB |
| RF 类型RF Type | 手机，GSM，DCS，PCS Cellular, GSM, DCS, PCS |
| 电源电压Voltage - Supply | 2.4V~3V |
| 电源电流Current - Supply | 12mA |
| 测试频率Test Frequency | 1.8GHz |
| Description & Applications | FEATURES • High gain, GMA=20dB at 1.8GHz • Low noise figure, NF=1.4dB at 1.8GHz • Prematched • Ideal for GSM, DCS1800, PCS1900 • Open collector output • Typical supply voltage: 2.4-3V • SIEGET®-45 technology |
| 描述与应用 | 特点 •GMA=为20dB在1.8GHz的高增益， •低噪声系数NF=1.4分贝为1.8GHz •Prematched的 •适用于GSM，DCS1800，PCS1900 •集电极开路输出 •典型电源电压：2.4-3V •SIEGET®-45技术 |
| 规格书PDF |
