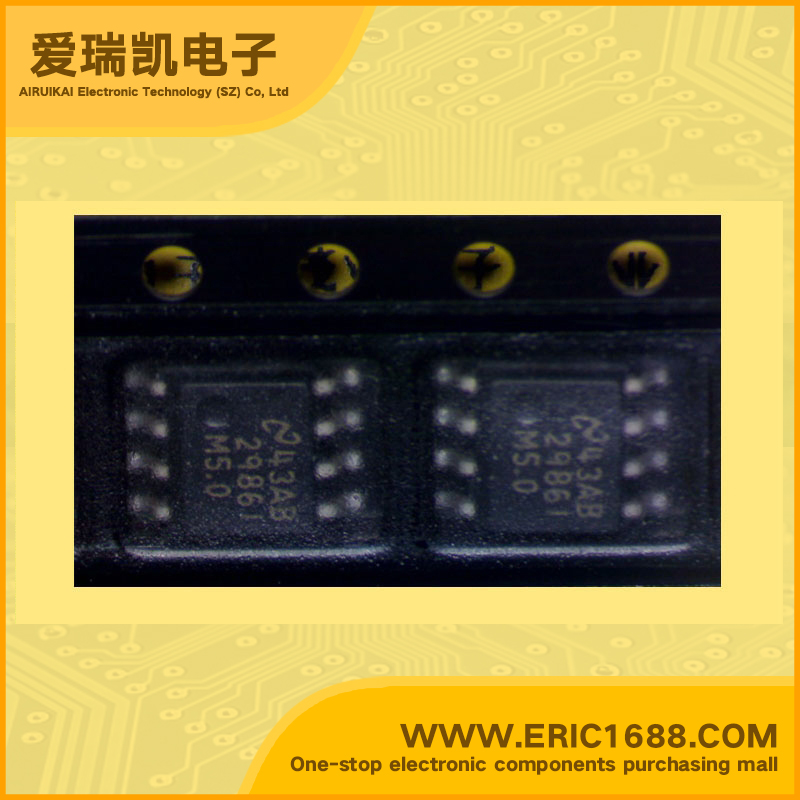

LP2986IMX-5.0 LDO电压调整器/稳压电源IC 5V 180mV/0.18V SO-8 marking/标记 2986 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | -0.3~16V |
| 输出电压VOUTVoltage - Output | 5V |
| 输出电流IoCurrent - Output | 200mA/0.2A |
| 最大压降VDOVoltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | Micropower, 200 mA Ultra Low-Dropout Fixed or Adjustable Voltage Regulator ;•Ultra low dropout voltage •Guaranteed 200 mA output current •SO-8 and mini-SO8 surface mount packages •<1 µA quiescent current when shutdown •Low ground pin current at all loads •0.5% output voltage accuracy (“A” grade) •High peak current capability (400 mA typical) •Wide supply voltage range (16V max) •Overtemperature/overcurrent protection •−40˚C to +125˚C junction temperature range • Cellular Phone •Palmtop/Laptop Computer •Camcorder, Personal Stereo, Camera |
| 描述与应用 | 微功耗，200毫安超低压差稳压器固定或可调;•超低压差电压 •保证200 mA的输出电流 •SO-8和小型SO8封装的表面贴装封装 <1μA的静态电流，关断时 •低接地端子电流在所有负载 •0.5％的输出电压精度（“A”级） •高的峰值电流能力（400 mA典型） •宽电源电压范围（16V最大） •过热/过流保护 •-40˚C至+125˚C的结温范围内 •移动电话 •掌上电脑/笔记本电脑 •摄像机，照相机，个人立体声 |
| 规格书PDF |
