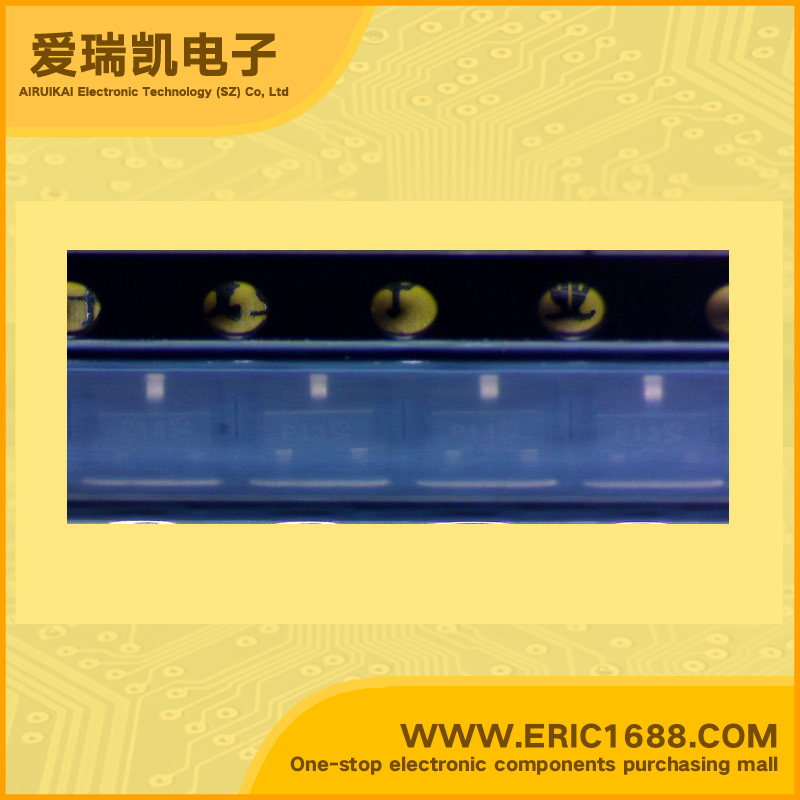

DDTA114ECA-7-F 带阻尼PNP三极管 -50V -50mA 0.2W/200mW SOT-23/SC-59 标记P13 开关电路，逆变器，接口电路，驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -50mA |
| 基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Feature • PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR • Epitaxial Planar Die Construction • Complementary NPN Types Available (DDTC) • Built-In Biasing Resistors, R1 = R2 • Lead Free/RoHS Compliant (Note 2) |
| 描述与应用 | 特点 •PNP预偏置小信号SOT-23表面贴装晶体管 •外延平面模施工 •互补NPN类型（DDTC） •内置偏置电阻R1= R2 •无铅/ RoHS规定（注2） |
| 规格书PDF |
