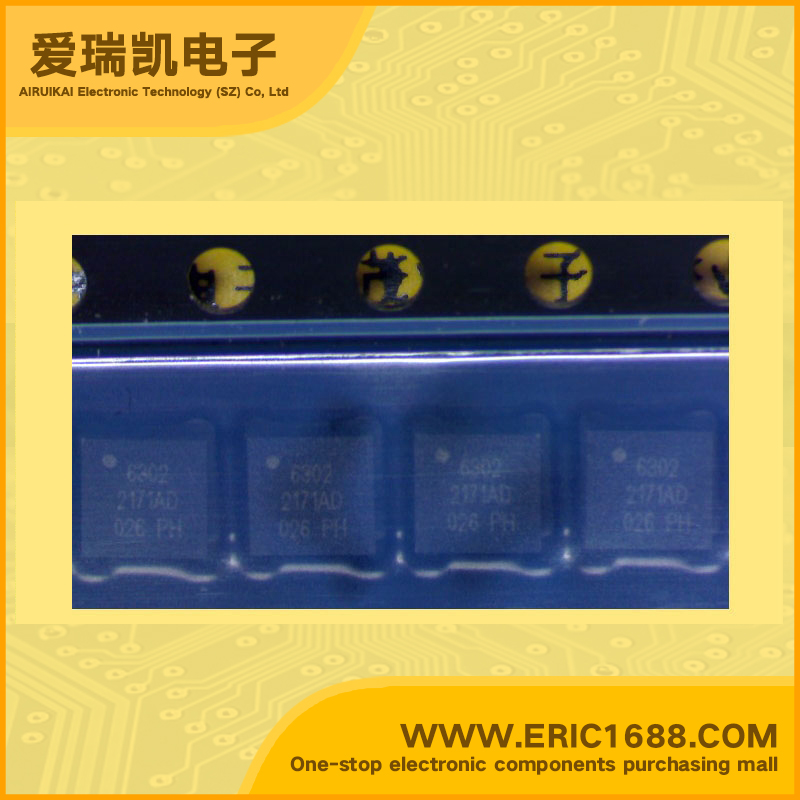

射频放大器 AWT6302M9Q7 M9 marking/标记 6302
| 频率Frequency | 1850MHz~1910MHz |
| P1dB | |
| 增益Gain | 27dB |
| 噪声系数Noise Figure | |
| RF 类型RF Type | CDMA |
| 电源电压Voltage - Supply | 5V |
| 电源电流Current - Supply | 3.5mA |
| 测试频率Test Frequency | |
| Description & Applications | FEATURES • PCS/CDMA 3.4V/28dBm Linear Power Amplifier Module • InGaP HBT Technology • High Efficiency: 40% • Low Quiescent Current: 50 mA • Low Leakage Current in Shutdown Mode: <1 µA • VREF = +2.8 V (+2.7 V min over temp) • Optimized for a 50 Ω System • Low Profile Miniature Surface Mount Package:1.1mm • CDMA 1XRTT, 1xEV-DO Compliant • Pinout Enables Easy Phone Board Migration From 4mm x 4mm Package APPLICATIONS • PCS CDMA Wireless Handsets • Dual Band CDMA Wireless Handsets |
| 描述与应用 | 特点 •PCS/ CDMA3.4V/28dBm的线性功率放大器模块 •InGaP HBT技术 •高效率：40％ •低静态电流：50 mA •低漏电流关断模式：<1μA •VREF=+2.8 V（+2.7 V最小过温） •优化50Ω系统 •薄型微型表面贴装封装：1.1毫米 •CDMA 1XRTT的1xEV-DO标准 •引脚4mm x 4mm封装，便于手机板迁移 应用 •PCS CDMA无线手机 •双频段CDMA无线手机 |
