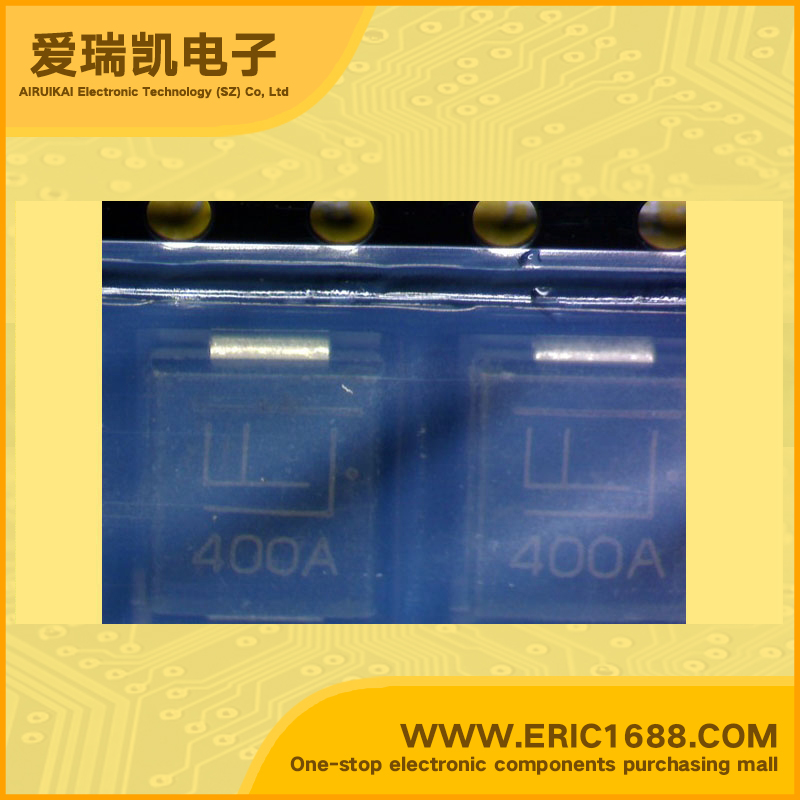

1.5SMC400A 瞬态抑制二极管TVS/ESD 342V 2.8A DO-214AB/SMC-400V 标记400A
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 342V |
| 反向击穿电压VBRBreakdown Voltage | 400V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 1500W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 2.8A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | Transient Voltage Suppression Diodes；Features • RoHS compliant • For surface mounted applications in order to optimize board space • Low profile package • Built-in strain relief • Glass passivated junction • Low Inductance • Excellent clamping capability • Repetition Rate (duty cycle):0.05% • Fast response time: typically less than 1.0ps from 0 Volts to BV min. • Typical IR less than 1µA above 10V • High temperature soldering: 250˚C/10 seconds at terminals |
| 描述与应用 | 瞬态电压抑制二极管;特性 •通过无铅认证 •表面安装的应用程序为了优化板空间 •低轮廓包 •内置应变张拉 •玻璃钝化结 •低电感 •优秀的夹紧能力 •重复率(周期性):0.05% •快速响应时间:通常小于1.0 ps从0伏来 BV min。 •典型红外小于1µa高于10 v •高温钎焊:250˚C / 10秒在终端 |
| 规格书PDF |
