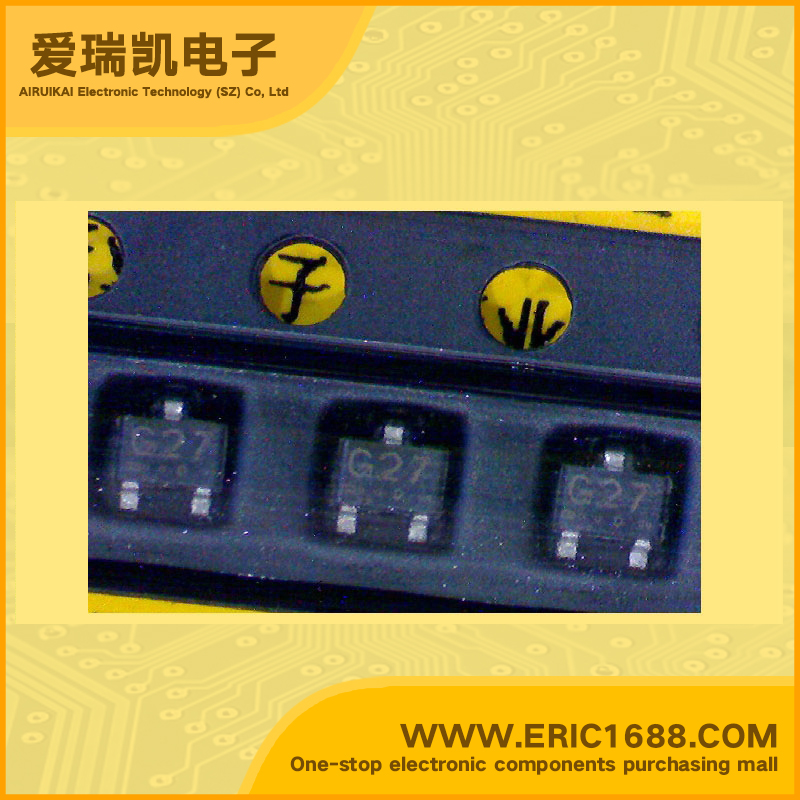

2SK3749 N沟道MOSFET 50V 100mA/0.1A SOT-323/SC-70 marking/标记 G27 高输入阻抗
| 最大源漏极电压Vds Drain-Source Voltage | 50V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 7V |
| 最大漏极电流Id Drain Current | 100mA/0.1A |
| 源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance | 0.015Ω/Ohm @10mA,4V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | 0.9-1.5V |
| 耗散功率Pd Power Dissipation | 150mW/0.15W |
| Description & Applications | MOS FIELD EFFECT TRANSISTOR N-CHANNEL MOS FET FOR HIGH-SPEED SWITCHIG DESCRIPTION The 2SK3749 is an N-channel vertical MOS FET. Because it can be driven by a voltage as low as 2.5 V and it is not necessary to consider a drive current, this FET is ideal as an actuator for low-current portable systems such as headphone stereos and video cameras. Features N-CHANNEL MOS FET FOR HIGH-SPEED SWITCHING Gate can be driven by 2.5 V Because of its high input impedance, there’s no need to consider drive current |
| 描述与应用 | MOS场效应晶体管 N沟道MOS FET高速SWITCHIG 说明 2SK3749是一个N沟道垂直MOS FET。因为 它可以由一个电压驱动低至2.5 V，这是不 必要考虑驱动电流，这FET是理想的作为 执行器的低电流的便携式系统，如耳机 音响和摄像机。 特性 N沟道MOS FET高速开关 门可以由2.5 V驱动 由于其高输入阻抗，就没有必要考虑驱动电流 |
