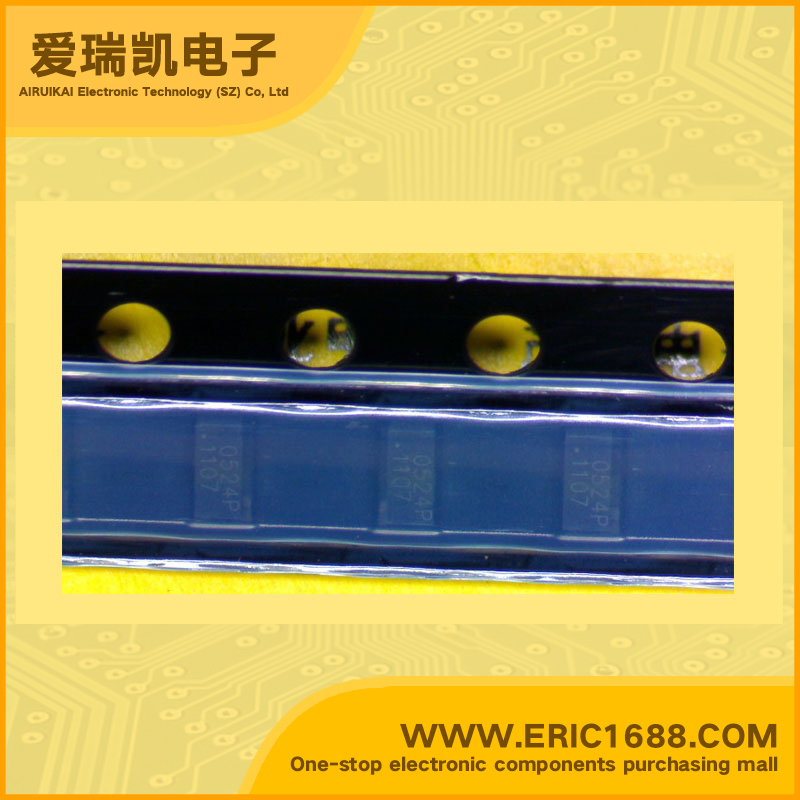

RCLAMP0524PATCT 瞬态抑制二极管TVS/ESD 5V 5A SLP2510P8 标记0524P
| 极性Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5V |
| 反向击穿电压VBRBreakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 150W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 5A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | FEATURES •Ultra Low Capacitance TVS Arrays •ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-5 (Lightning) 5A (8/20µs) IEC 61000-4-4 (EFT) 40A (5/50ns) •Package design optimized for high speed lines •Flow-Through design •Protects two or four I/O lines •Low capacitance: 0.3pF typical (I/O to I/O) •Low clamping voltage •Low operating voltage: 5V •Solid-state silicon-avalanche technology |
| 描述与应用 | 特性 •超低电容TVS阵列 •高速数据线ESD保护 IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-5（闪电）5A（8/20μS） IEC61000-4-4（EFT）40A（5/50ns） •包装设计优化的高速线路 •流动设计 •保护两个或四个I / O线 •低电容：0.3PF典型（I / O到I / O） •低钳位电压 •低工作电压：5V •固态硅雪崩科技 |
| 规格书PDF |
