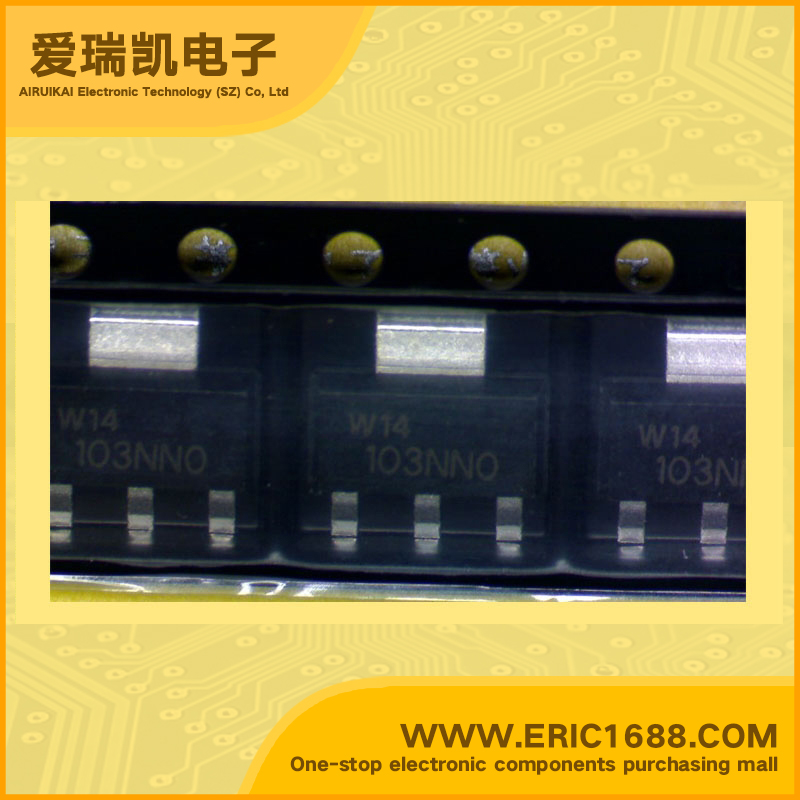

双向可控硅 Z0103NN0 SOT-223 marking/标记 103NN0
| 反向重复峰值电压VRRM/断态重复峰值电压VDRMRepetitive peak reverse voltage/Repetitive peak off-state voltage | 600V |
| 通态最大电流IT(RMS)RMS on-state current | 1A |
| 栅极触发电压VGTGate trigger voltage | 1.3V |
| 栅极触发电流IGTGate trigger current | 0.2mA-3mA |
| 保持电流IHHolding current | 7mA |
| 浪涌电流ITSM(50Hz、60Hz)Current - Non Rep. Surge 50, 60Hz (Itsm) | 12.5A |
| Description & Applications | General purpose low power motor control Industrial process control Home appliances Low power AC Fan controllers Direct interfacing to logic level ICs High blocking voltage capability Enhanced current surge capability Sensitive gate triggering in all four quadrants Enhanced noise immunity Surface-mountable package |
| 描述与应用 | 通用低功耗电机控制 工业过程控制 家用电器 低功率AC风扇控制器 直接连接到逻辑电平集成电路 高阻断电压能力 增强电流浪涌能力 敏感的门触发在所有四个象限 增强抗干扰能力 表面贴装封装 |
| 规格书PDF |
