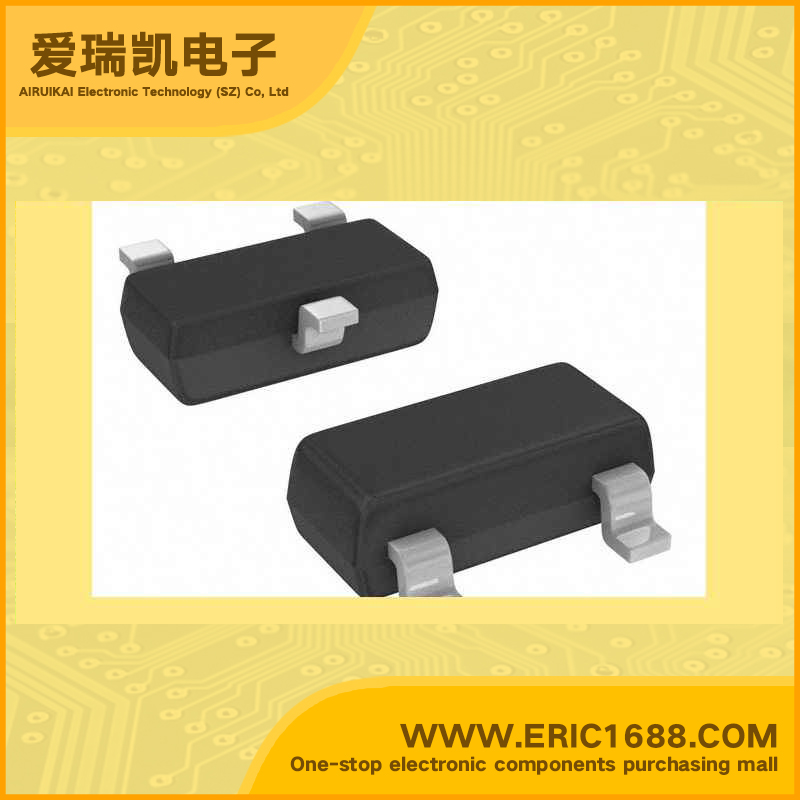

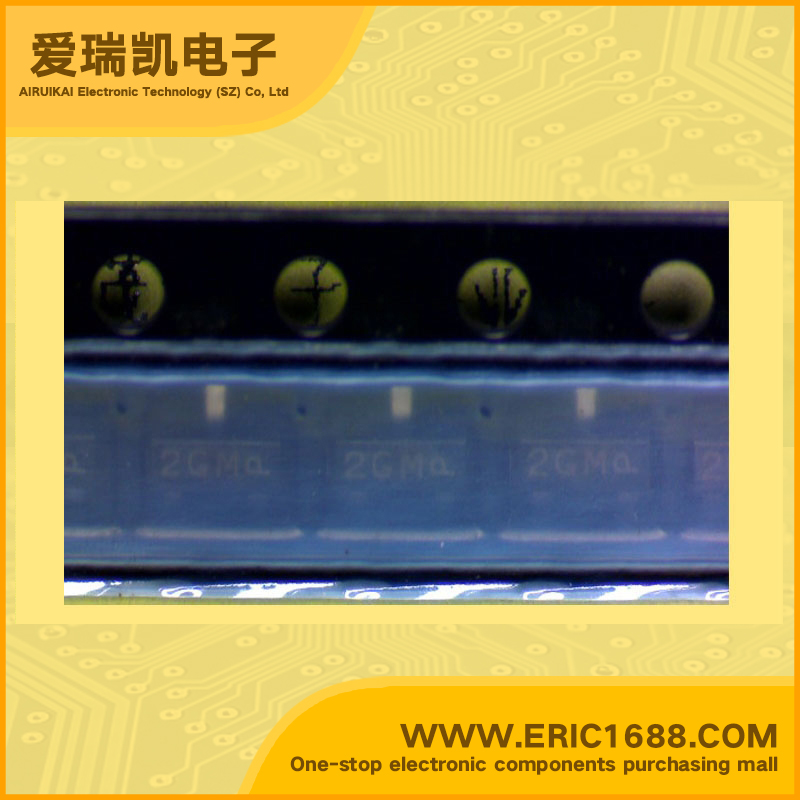

MMBTA56LT1 PNP三极管 -80V -500mA/-0.5A 50MHz 100 -250mV/-0.25V SOT-23/SC-59 marking/标记 GM
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −80V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 50MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -250mV/-0.25V |
| 耗散功率PcPoWer Dissipation | 225mW/0.225W |
| Description & Applications | Driver PNP Silicon Transistors Features • Pb−Free Package is Available |
| 描述与应用 | 驱动PNP硅晶体管 特点 •无铅包装是可用 |
| 规格书PDF |
