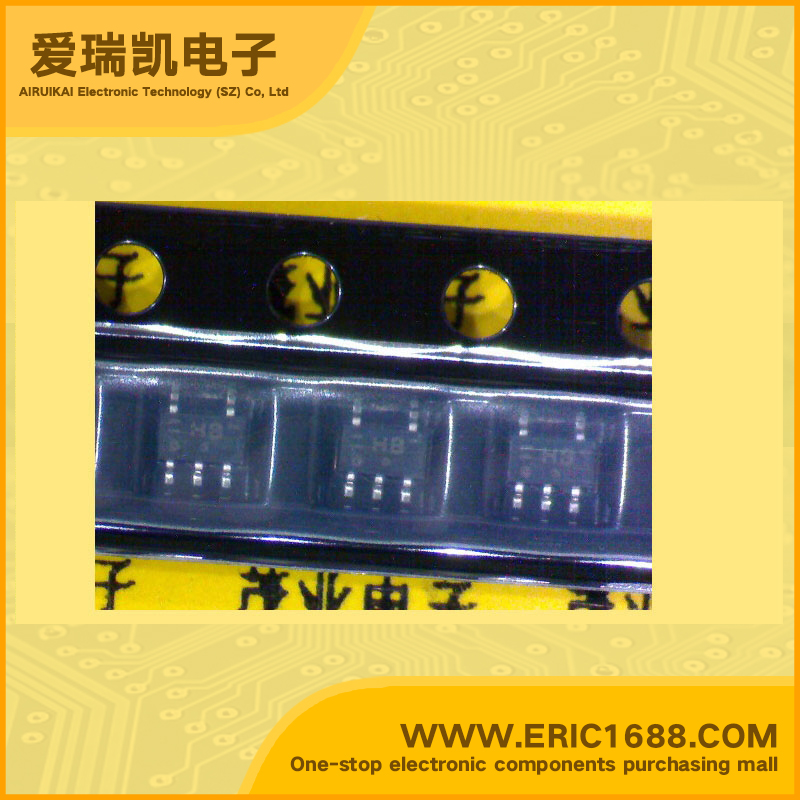

集成电路IC 或非门 74HC1G02GW SOT-353/SC-88A/TSSOP5 marking/标记 HB
| 逻辑类型Logic Type | 或非门 NOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~6V |
| 静态电流IqCurrent - Quiescent (Max) | 20uA |
| 输出高，低电平电流Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 23ns @ 6V，50pF |
| Description & Applications | 2-input NOR gate；Features Symmetrical output impedance High noise immunity Low power dissipation Balanced propagation delays SOT353-1 and SOT753 package options |
| 描述与应用 | 双输入或非门；特性 对称的输出阻抗 高抗干扰 低功耗 平衡传输时延 SOT353-1和SOT753封装选项 |
| 规格书PDF |
