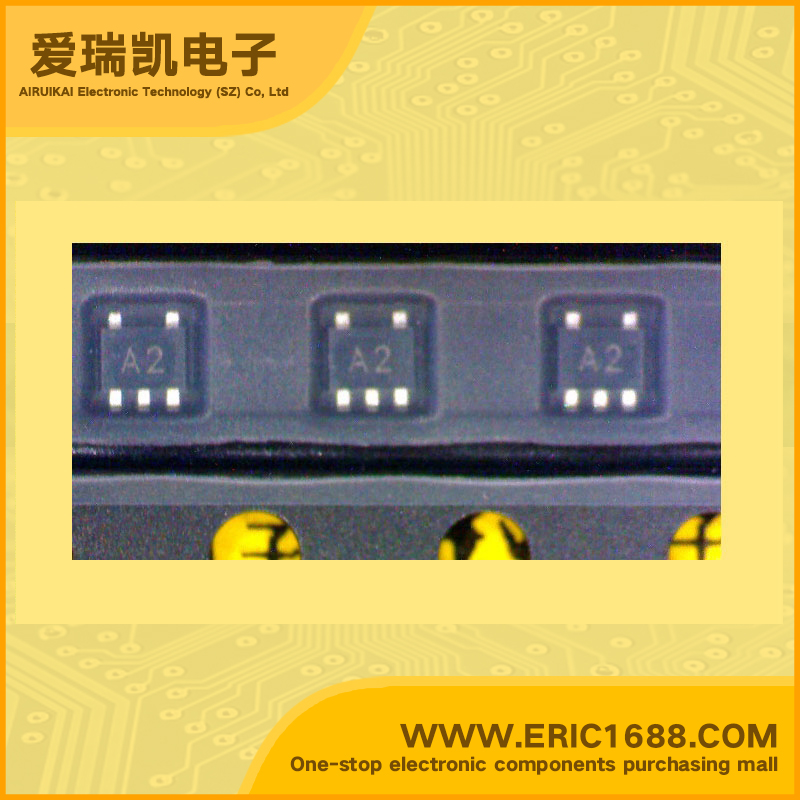

PESD3V3L4UW 单向ESD保护,四管共阳极 SOT-553-3.3v 标记 A2
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 3.3V |
| 反向击穿电压VBRBreakdown Voltage | 5.32V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 30W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 3.5A |
| 额定耗散功率PdPower dissipation | 0.25W/250mW |
| Description & Applications | FEATURES • Low capacitance quadruple ESD protection array • Uni-directional ESD protection of four lines or bi-directional ESD protection of 3 lines • Reverse standoff voltage: 3.3 and 5 V • Low diode capacitance • Ultra low leakage current • Ultra small SOT665 surface mount package • ESD protection >20 kV • IEC 61000-4-2; level 4 (ESD); 15 kV (air) or 8 kV (contact). |
| 描述与应用 | 特性 •四倍低电容ESD保护阵列 •单向ESD保护四线或3线双向ESD保护 •反向断态电压：3.3和5 V •低电容二极管 •超低漏电流 •超小型SOT665表面贴装封装 •ESD保护>20千伏 •IEC61000-4-2第4级（ESD）15 kV（空气）或8 kV（接触） |
| 规格书PDF |
