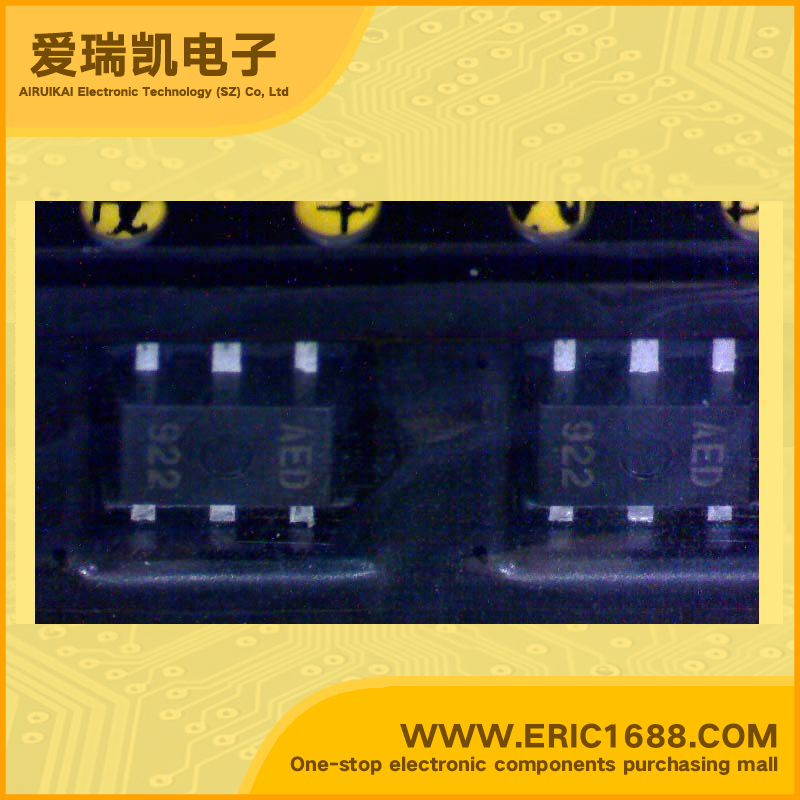

S-873022BUP LDO电压调整器/稳压电源IC 3V 450mV/0.45V SOT89-5 marking/标记 AED 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | -0.3~26V |
| 输出电压VOUTVoltage - Output | 3V |
| 输出电流IoCurrent - Output | 30mA |
| 最大压降VDOVoltage - Dropout | 450mV/0.45V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 1W |
| Description & Applications | HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION•Accuracy of output voltage: ±2.4 % 2.5 V to 5.8 V (0.1 V step) • Accuracy of detection voltage: ±2.4 % (For the F type, the release voltage is ±1.1 %) 2.1 V to 11.3 V (0.1 V step) •Low I/O voltage difference: 0.15 V typ. (at IOUT=30 mA, VOUT=5.0 V) 0.45 V typ. (at IOUT=30 mA, VOUT=3.0 V) • Low current consumption: At Operation mode: 8 μA max. At Shutdown mode: 3.5 μA max. (Available for the C/E/G type) • Wide operating voltage range: 24 V max. • Wide operating temperature range: −40°C to +85°C • Built-in delay circuit or shutdown circuit • Built-in short-circuit protection circuit |
| 描述与应用 | 带复位功能 耐高压电压稳压器• 高精度输出电压 ±2.4 % 2.5 V ~ 5.8 V (进阶单位为 0.1 V) • 高精度检测电压 ±2.4 % (F 型产品的解除电压精度为±1.1 %) 2.1 V ~ 11.3 V (进阶单位为 0.1 V) • 低输入输出电压差 0.15 V (典型值) (IOUT=30 mA、VOUT=5.0 V 时) 0.45 V (典型值) (IOUT=30 mA、VOUT=3.0 V 时) • 超低消耗电流 工作时： 8 μA (最大值) 休眠时： 3.5 μA (最大值) (仅限 C/E/G 型产品) • 工作电压范围很宽 24 V (最大值) • 工作温度范围很宽 −40 °C ~ +85 °C • 内置了延迟电路或电源关闭电路 • 内置短路保护电路 |
| 规格书PDF |
