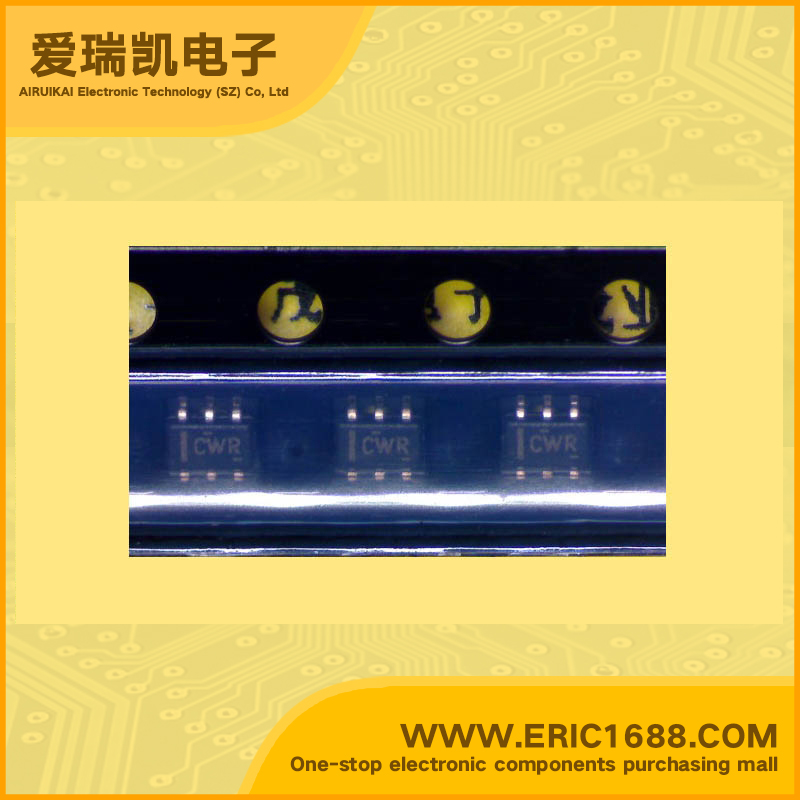

集成电路IC 可配置多功能GATE SN74LVC1G98DCKR SOT-363/SC70-6 marking/标记 CWR

热销商品

产品描述
逻辑类型Logic Type可配置多功能 Configurable Multiple Function
电路数Number of Circuits1
输入数Number of Inputs3
电源电压VccVoltage - Supply是 Yes
静态电流IqCurrent - Quiescent (Max)单端 Single-Ended
输出高,低电平电流Current - Output High, Low32mA,32mA
低逻辑电平Logic Level - Low1.65 V ~ 5.5 V
高逻辑电平Logic Level - HighCONFIGURABLE MULTIPLE-FUNCTION GATE DESCRIPTION/ORDERING INFORMATION This configurable multiple-function gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G97 features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND. This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT– ) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using I off The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. FEATURES Available in the Texas Instruments NanoFree™ • Latch-Up Performance Exceeds 100 mA Per Package JESD 78, Class II • Supports 5-V VCC Operation • ESD Protection Exceeds JESD 22 • Inputs Accept Voltages to 5.5 V – 2000-V Human-Body Model (A114-A) • Max tpd of 6.3 ns at 3.3 V – 200-V Machine Model (A115-A) • Low Power Consumption, 10-μA Max ICC – 1000-V Charged-Device Model (C101) • ±24-mA Output Drive at 3.3 V • Ioff Supports Partial-Power-Down Mode
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL配置的多函数栅极 描述/订购信息 此配置多功能的门是专为1.65-V至5.5 V的VCC运作。 的SN74LVC1G97功能配置的多种功能。输出状态是由八种模式 3-bit输入。用户可以选择MUX逻辑功能,OR,NOR,NAND,逆变器,和noninverter。所有的输入可以连接到VCC或GND。 作为一个独立的栅极,该设备的功能,但因为施密特行动,它可能具有不同的输入 正向(VT+)和负向(VT)信号的阈值水平。 NanoFree包装技术是IC包装概念的重大突破,用模具包。 这个装置是完全指定部分断电应用程序使用I关闭 我关闭电路禁止输出, 防止损坏电流回流通过设备时,断电。 在德州仪器NanoFree™•闭锁性能超过100 mA每 包装JESD 78,II类 •支持5-V的VCC操作•ESD保护超过JESD22 •接受输入电压为5.5 V - 2000-V人体模型(A114-A) •最大TPD为6.3 ns,3.3 V - 200-V机型号(A115-A) •低功耗,10μA最大ICC - 1000-V带电器件模型(C101) •±24 mA输出驱动在3.3 V •IOFF支持部分掉电模
