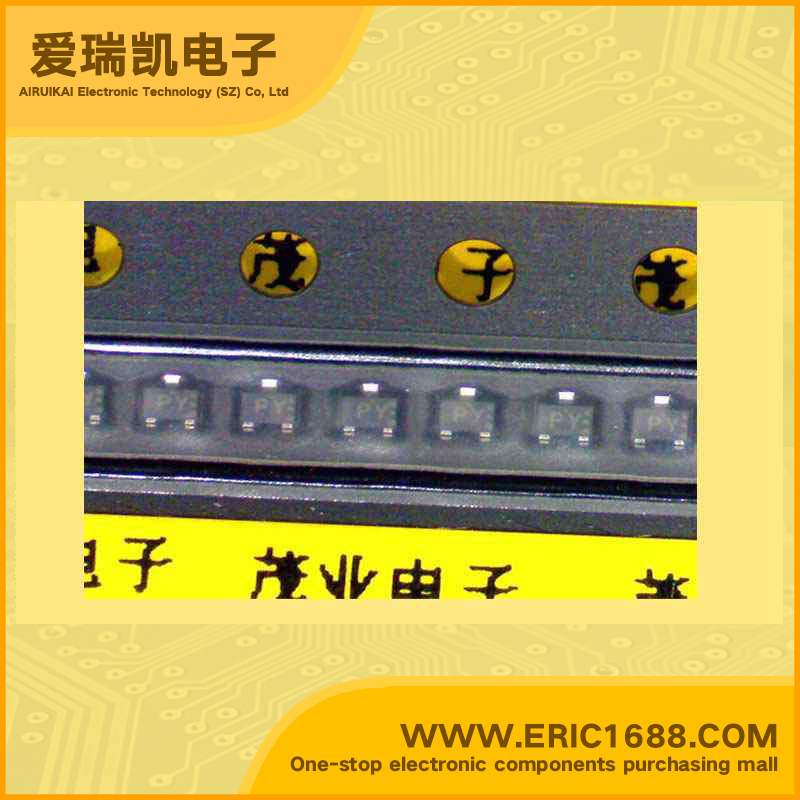

2SA2154MFV-Y PNP三极管 -50V -100mA/-0.1A 80MHz 120~240 -300mV/-0.3V sot-723/VESM marking/标记 PY 通用放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 50mW |
| Description & Applications | PNP Silicon epitaxial planar type General-Purpose Amplifier Applications Features • High voltage and high current • Excellent hFE linearity • High hFE • Complementary to 2SC6026 • Lead (Pb) free |
| 描述与应用 | PNP硅外延平面型 通用放大器应用 特点 •高电压和高电流 •优秀的HFE线性 •高HFE •互补型2SC6026 •无铅（Pb） |
| 规格书PDF |
