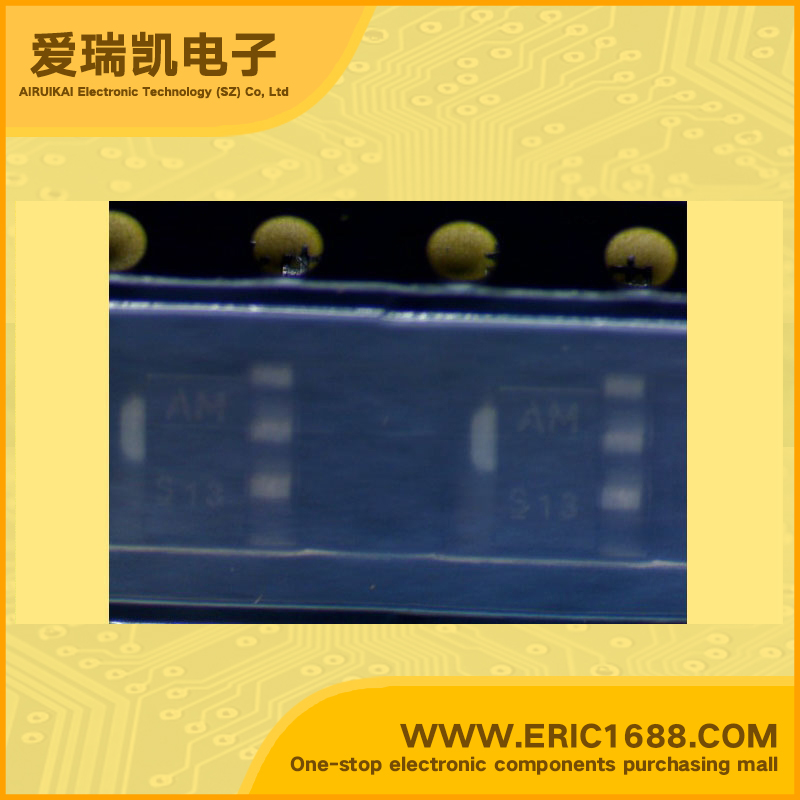

BCX52-16 PNP三极管 -60V -1A 125MHz 100~250 -500mV/-0.5V SOT-89/SC-62 marking/标记 AM 驱动器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流ICCollector Current(IC) | -1A |
| 截止频率fTTranstion Frequency(fT) | 125MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~250 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | • For AF driver and output stages • High collector current • Low collector-emitter saturation voltage • Complementary types: BCX54...BCX56 (NPN) |
| 描述与应用 | •对于AF驱动器和输出级 •高集电极电流 •低集电极 - 发射极饱和电压 •互补类型：BCX54 BCX56（NPN） |
