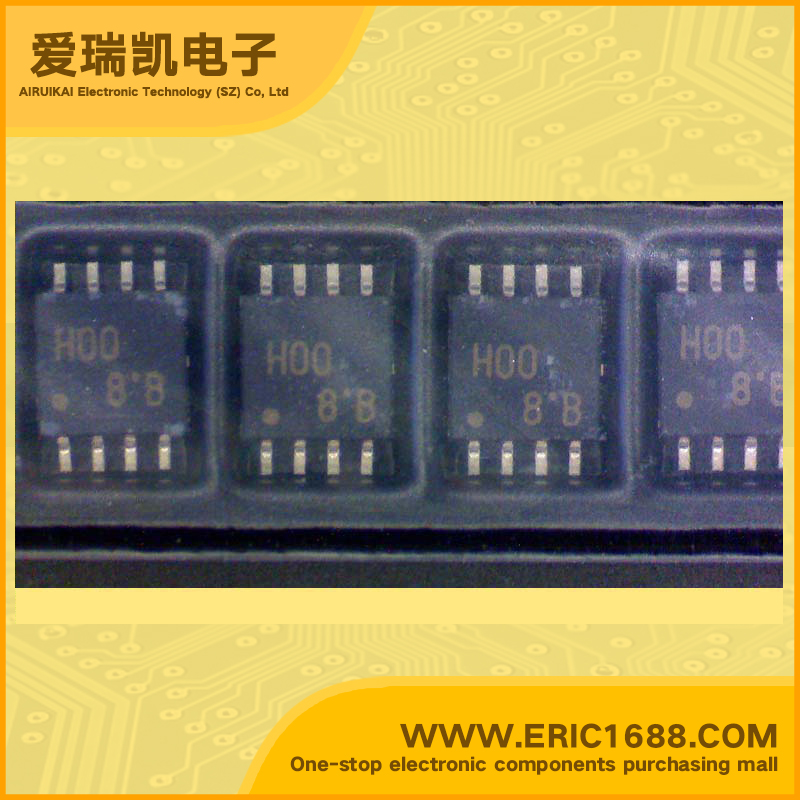

集成电路IC 与非门 TC7WH00FU SM8 marking/标记 H00
| 逻辑类型Logic Type | 与非门 NAND Gate |
| 电路数Number of Circuits | 2 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 2µA |
| 输出高，低电平电流Current - Output High, Low | -8mA,8mA |
| 低逻辑电平Logic Level - Low | 0.5v |
| 高逻辑电平Logic Level - High | 1.5v |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 7.5ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | Dual 2-Input NAND Gate ;• High speed operation : tpd = 3.7ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation : ICC = 2μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • Operating voltage range : VCC = 2 to 5.5 V • Balanced propagation delays : tpLH ≒ tpHL • 5.5-V Tolerant inputs • Identical pin assignment and function with TC7W00 |
| 描述与应用 | 双2输入与非门;•高速运行：TPD =3.7ns（典型值） 在VCC = 5 V，CL=15PF •低功耗：ICC=2μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •工作电压范围：VCC=2至5.5 V •平衡传输时延：TPLH≒TPHL •5.5-V容错输入 •相同的引脚分配和功能TC7W00 |
| 规格书PDF |
