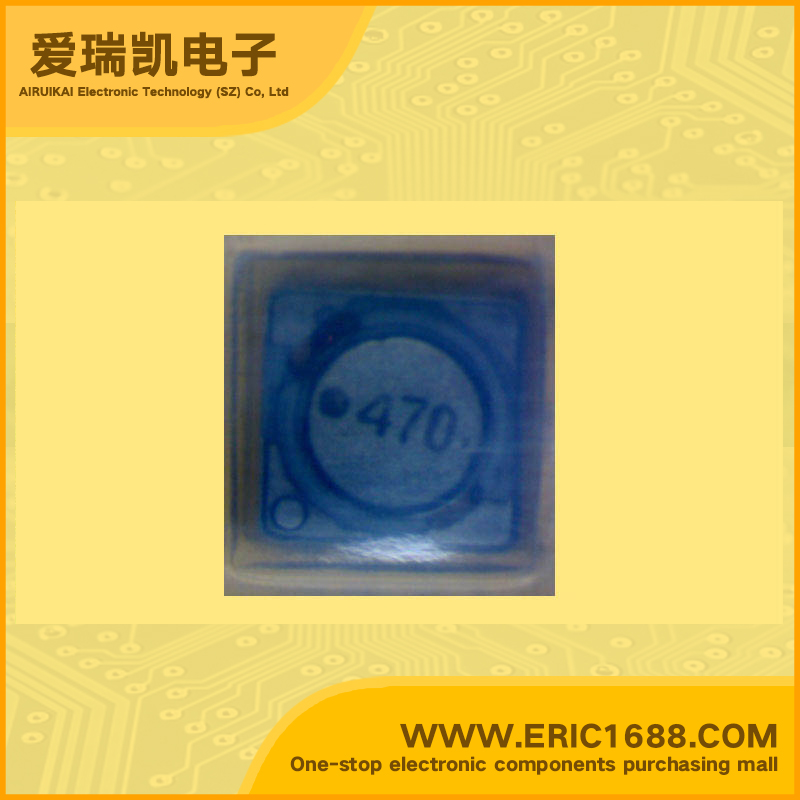

功率电感 D73C-101 100uH 7M-101
| Q值Q Value | |
| 电感值Inductance | 100uH |
| 误差Tolerance | ± 20% |
| 额定电流Current Rating | 300mA |
| 饱和电流Current - Saturation | |
| DC电阻DCRDC Resistance (DCR) | 0.78Ω/Ohm |
| Description & Applications | Features 1:Low profile (3.0~5.1mm max height) 2:inductance range:1-560uH 3:Available in magnetically shielded or unshielded versions 4:Supplied on tape and reel for auto insertion 5:ldeal for a variety of DC-DC converter inductor applications |
| 描述与应用 | 特点 1：薄型（3.0〜5.1毫米最大高度） 2：电感范围:1-560UH 3：在磁屏蔽或非屏蔽版本 4：提供自动插入磁带和卷轴 5：ldeal的DC-DC转换器电感器的应用用于各种 |
| 规格书PDF |
