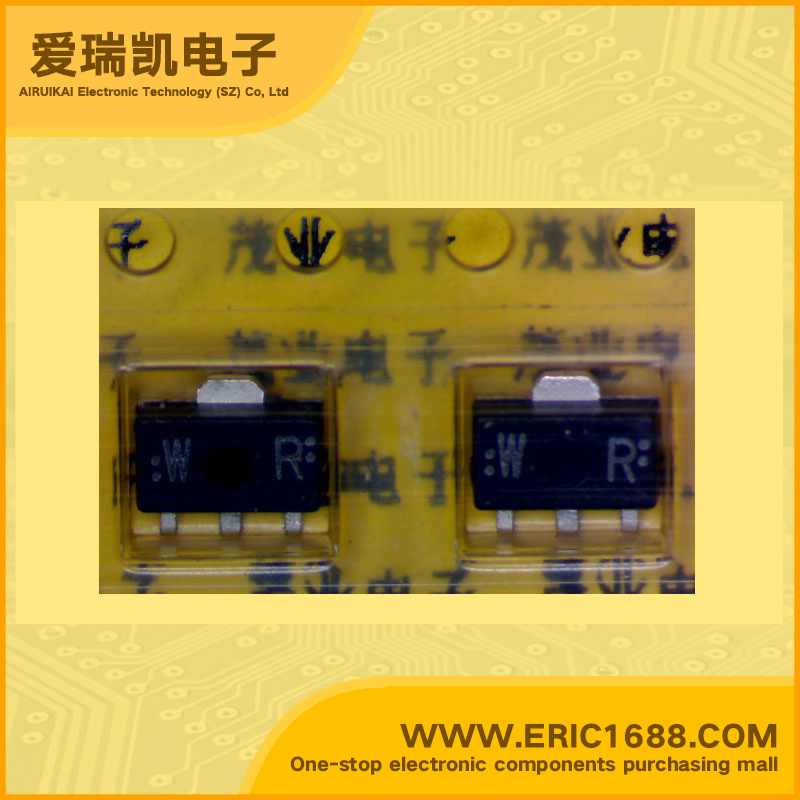

2SD968-R NPN三极管 100V 500mA/0.5A 120MHz 90~220 200mV/0.2V SOT-89/SC-62 marking/标记 WR 低频驱动放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 100V |
| 集电极连续输出电流ICCollector Current(IC) | 500mA/0.5A |
| 截止频率fTTranstion Frequency(fT) | 120MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 90~220 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 200mV/0.2V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | Silicon NPN epitaxial planer type For low-frequency driver amplification Complementary to 2SB789 and 2SB789A high collector to emitter voltage Vceo large collector power dissipation Pc |
| 描述与应用 | NPN硅外延平面型 对于低频驱动放大 互补2SB7892SB789A 高集电极到发射极电压VCEO 大集电极功耗Pc |
| 规格书PDF |
