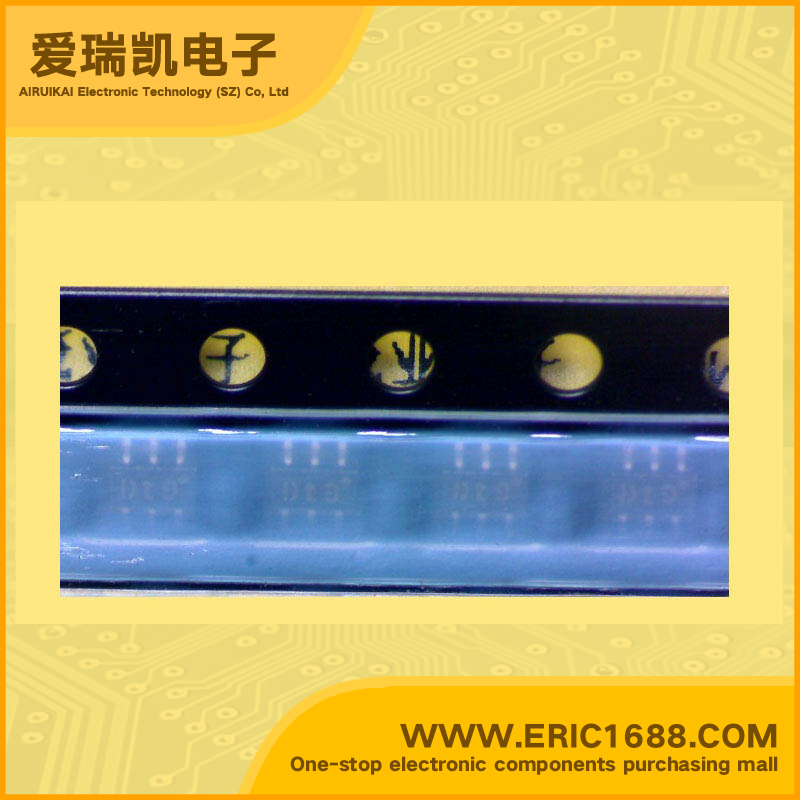

PUMD9 NPN+PNP复合带阻尼三极管 50V/-50V 100mA/-100mA 100 300mW/0.3W SOT-363/SC-88/SC70-6 标记Dt9 开关电路 逆变器 接口电路 驱动电路
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V/-50V |
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V/-50V |
集电极连续输出电流IC Collector Current(IC) | 100mA/-100mA |
Q1基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
Q1电阻比(R1/R2) Q1 Resistance Ratio | 0.21 |
Q2基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
Q2电阻比(R1/R2) Q2 Resistance Ratio | 0.21 |
直流电流增益hFE DC Current Gain(hFE) | 100 |
截止频率fT Transtion Frequency(fT) | 230MHz/180MHz |
耗散功率Pc Power Dissipation | 300mW/0.3W |
Description & Applications | Features • NPN/PNP resistor-equipped transistors; • 100 mA output current capability • Reduces component count • Built-in bias resistors • Reduces pick and place costs • Simplifies circuit design • AEC-Q101 qualified APPLICATIONS • Low current peripheral drivers • Replacement of general purpose transistors in digital applications • Control of IC inputs |
描述与应用 | 特点 •NPN/ PNP电阻配备晶体管; •100 mA的输出电流能力 •减少了元件数量 •内置偏置电阻 •减少取放成本 •简化电路设计 •通过AEC-Q101标准 应用 •低电流外设驱动程序 •通用晶体管数字应用的更换 •控制IC投入 |
