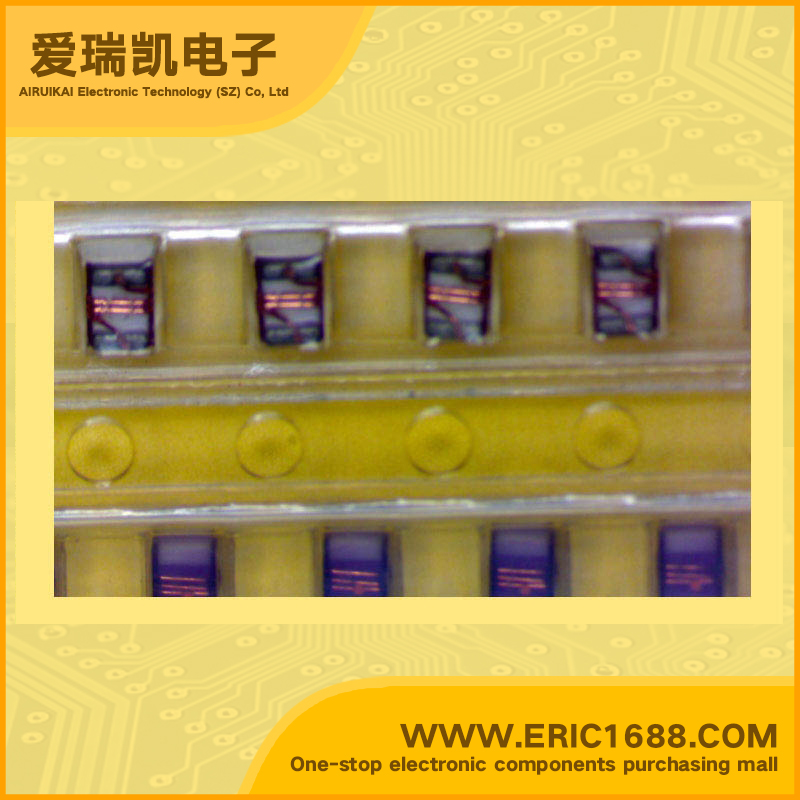

小功率电感 0805HQ-12NXJBC 12nH 0805-12N
| 电感值Inductance | 12nH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 1600mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 80 @ 1000 MHz |
| 自振谐频率SRFFrequency - Self Resonant | 3GHz |
| DC电阻DCRDC Resistance (DCR) | 0.045Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | The 0805HQ Series offers our highest Q factors in an 0805 form factor. In addition, current handling has been improved with significantly lower DCR values. Like all Coilcraft wire wound ceramic chip inductors, the 0805HQ Series provides exceptional SRFs, tight inductance tolerance and batch consistency. For even higher Qs, consider our surface mount spring inductors that combine the high Q of an air wound coil with the convenience of automatic placement. |
| 描述与应用 | 0805HQ系列提供高品质因数Q在0805的外形,电流处理能力得到了提高，显着更低的DCR值。 COILCRAFT绕线像所有的陶瓷贴片电感，0805HQ系列提供了特殊的自振谐频率，电感公差和批次的一致性。 对于更高QS，表面贴装电感的高Q值的空气缠绕线圈。 |
| 规格书PDF |
