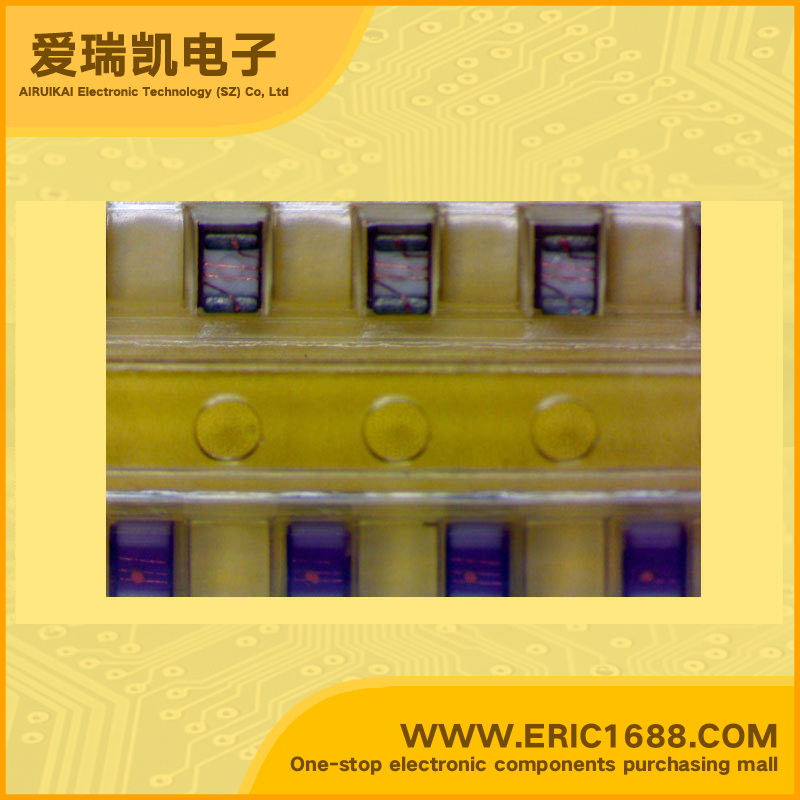

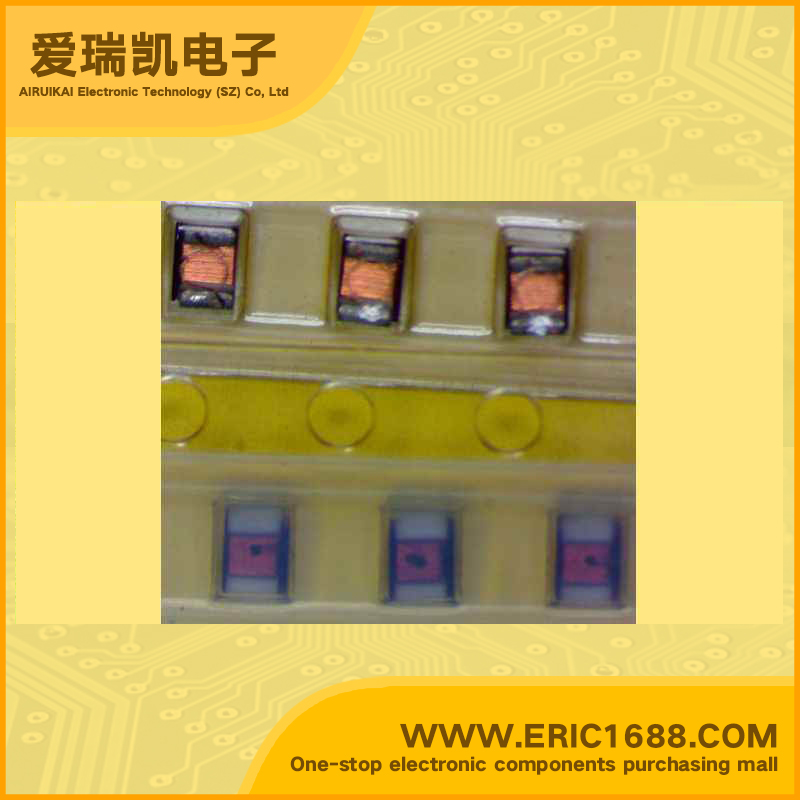

小功率电感 0805CS-080XJBC 8.2nH 0805-8N2
| 电感值Inductance | 8.2nH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 600mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 50 @ 1000 MHz |
| 自振谐频率SRFFrequency - Self Resonant | 4.4GHz |
| DC电阻DCRDC Resistance (DCR) | 0.12Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | • Chip Inductors – 0805CS Series (2012) • Exceptional Q values, even at high frequencies • Tight tolerances – 2% for most; 1% for some values • Wirewound construction provides the highest SRFs in 0805 size |
| 描述与应用 | •片式电感 - 0805CS系列（2012） •特殊的Q值，即使在高频率 •严格的公差 - 2％为最多;一些值的1％ •线绕型电感提供了最高自振谐频率，0805尺寸 |
| 规格书PDF |
