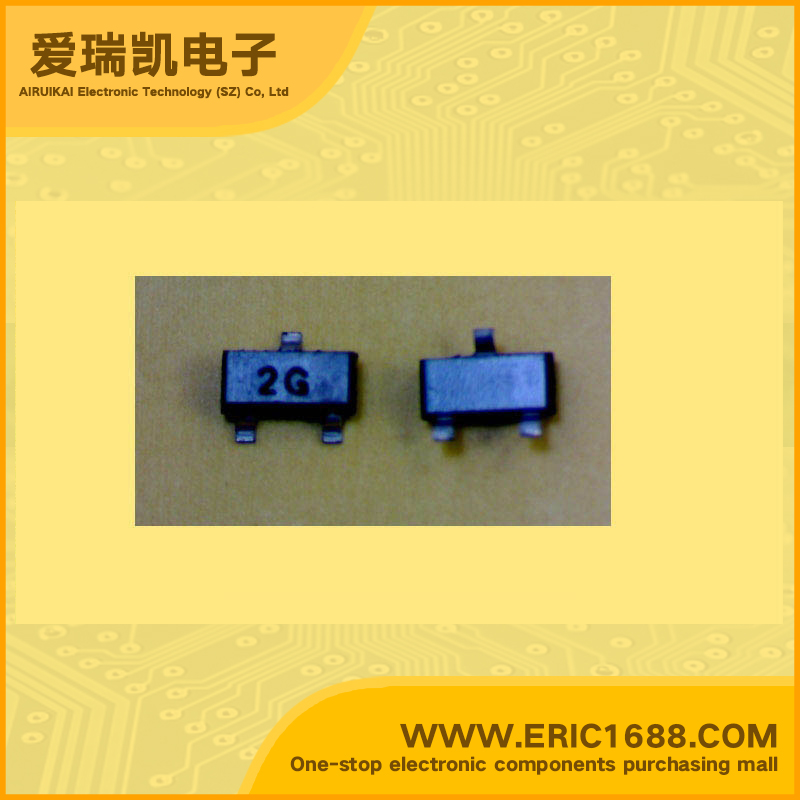

FMMTA56TA PNP三极管 -80V -500mA/-0.5A 100MHz 50 -250mV/-0.25V SOT-23 marking/标记 2G 中等功率
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −80V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 50 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -250mV/-0.25V |
| 耗散功率PcPoWer Dissipation | 330mW/0.33W |
| Description & Applications | MEDIUM POWER TRANSISTORS FEATURES * Gain of 50 at IC=100mA |
| 描述与应用 | 中等功率晶体管 特点 *IC=100MA时放大50倍 |
| 规格书PDF |
