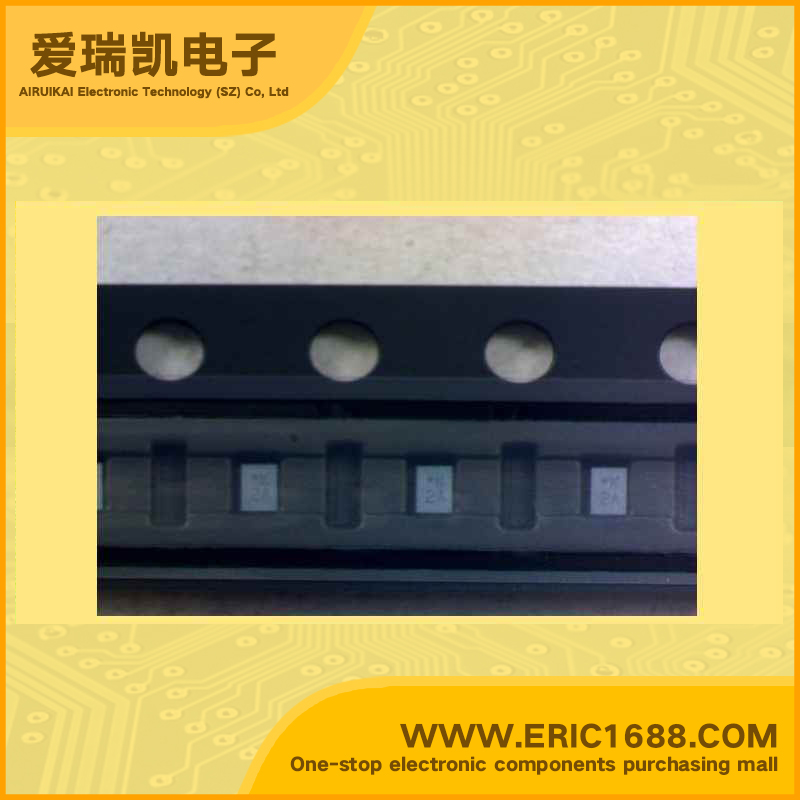

集成电路IC 变换器 TC7SP332WBG WCSP6 marking/标记 k
| 逻辑类型Logic Type | 变换器 Translator |
| 电路数Number of Circuits | |
| 输入数Number of Inputs | |
| 电源电压VccVoltage - Supply | |
| 静态电流IqCurrent - Quiescent (Max) | |
| 输出高，低电平电流Current - Output High, Low | |
| 低逻辑电平Logic Level - Low | |
| 高逻辑电平Logic Level - High | |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 1.0ns |
| Description & Applications | 3 V ~ 3.6 V |
| 描述与应用 | TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic Dual supply 2-Input OR Gate with Level Translator The TC7SP332 is a dual supply, advanced high-speed CMOS 2-input dual supply voltage interface OR gate fabricated with silicon gate CMOS technology. It is also designed with over voltage tolerant inputs and outputs up to 3.6 V. Designed for use as an interface between a 1.2-V, 1.5-V, 1.8-V, or 2.5-V bus and a 1.8-V, 2.5-V or 3.3-V bus in mixed 1.2-V, 1.5-V, 1.8-V or 2.5-V/1.8-V, 2.5-V or 3.3-V supply systems. All inputs are equipped with protection circuits against static discharge. Features • Level converter for interfacing 1.2-V to 1.8-V, 1.2-V to 2.5-V, 1.2-V to 3.3-V, 1.5-V to 2.5-V, 1.5-V to 3.3-V, 1.8-V to 2.5-V, 1.8-V to 3.3-V or 2.5 V to 3.3-V system. • High-speed operation : tpd = 6.8 ns (max) (VCCA = 2.5 ± 0.2 V, VCCB = 3.3 ± 0.3 V) pd = 7.8 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 3.3 ± 0.3 V) tpd = 9.0 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 31 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 9.5 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 2.5 ± 0.2 V) pd = 10.5 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 2.5 ± 0.2 V) pd = 32 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 37 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 1.8 ± 0.15 V) • Output current : IOH/IOL = ±12 mA (min) (VCC = 3.0 V) IOH/IOL = ±9mA (min) (VCC = 2.3 V) IOH/IOL = ±3 mA (min) (VCC = 1.65 V) • Latch-up performance: -300 mA • ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V • Ultra-small package: WCSP6 • Power-down protection is provided on all inputs and outputs |
| 规格书PDF |
