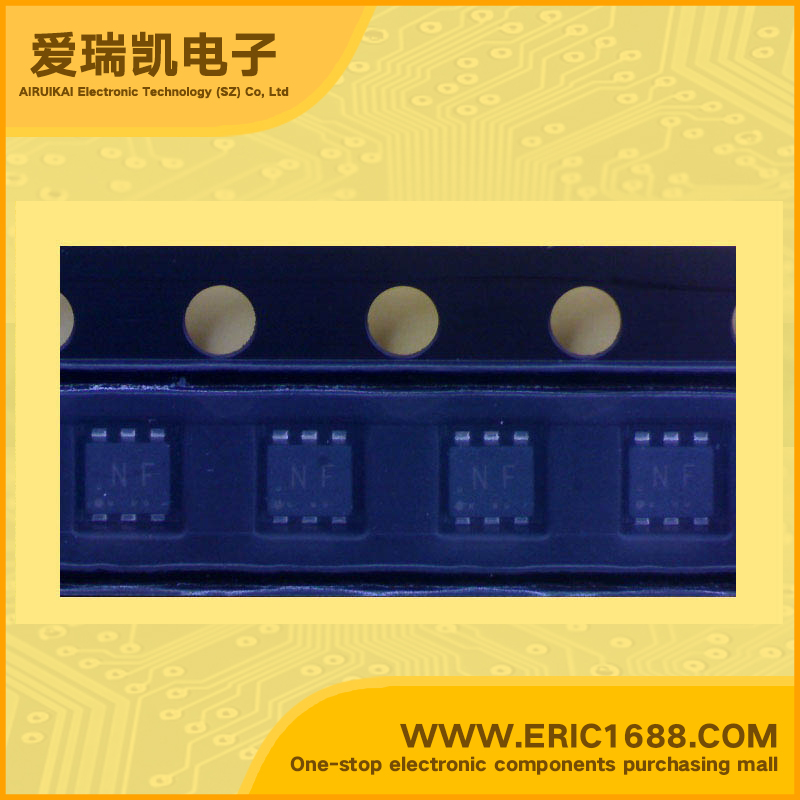

SSM6N24TU 复合场效应管 30V 500mA/0.5A SOT-363/SC70-6/UF6 marking/标记 NF 高速开关
| 最大源漏极电压VdsDrain-Source Voltage | 30V |
| 最大栅源极电压Vgs(±)Gate-Source Voltage | 12V |
| 最大漏极电流IdDrain Current | 500mA/0.5A |
| 源漏极导通电阻RdsDrain-Source On-State Resistance | 145mΩ@ VGS = 4.5V, ID = 500mA |
| 开启电压Vgs（th）Gate-Source Threshold Voltage | 0.5~1.1V |
| 耗散功率PdPower Dissipation | 500mW/0.5W |
| Description & Applications | TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSIII) High Speed Switching Applications • Optimum for high-density mounting in small packages • Low on-resistance: Ron = 145mΩ (max) (@VGS = 4.5 V) Ron = 180mΩ (max) (@VGS = 2.5 V) |
| 描述与应用 | 东芝场效应晶体管硅N沟道MOS类型（U-MOSIII） 高速开关应用 •最适用于高密度安装在小包装 •低导通电阻RON =145mΩ（最大）（@ VGS= 4.5 V） RON=180mΩ（最大）（@ VGS= 2.5 V） |
| 规格书PDF |
