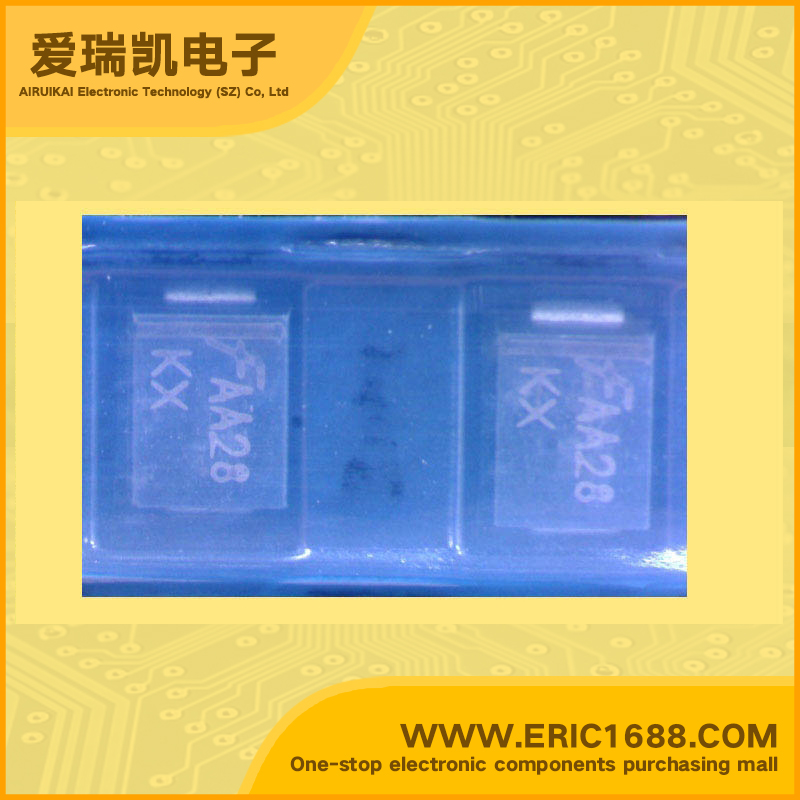

SMBJ10A 瞬态抑制二极管 SMB/DO-214AA 10V 代码 KX
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 10V |
| 反向击穿电压VBRBreakdown Voltage | 11.1V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 37A |
| 额定耗散功率PdPower dissipation | 5W |
| Description & Applications | SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watts；Features •PEAK PULSE POWER : 600 W (10/1000µs) •STAND OFF VOLTAGERANGE :From 5V to 188V. •UNI AND BIDIRECTIONAL TYPES •LOW CLAMPING FACTOR •FAST RESPONSE TIME •JEDEC REGISTERED PACKAGE OUTLINE |
| 描述与应用 | 表面贴装型瞬态电压抑制器功率600瓦;特点 •峰值脉冲功率：600 W（10/1000μS） •STAND OFF VOLTAGERANGE的：从5V到188V。 •单向和双向类型 •低钳位因子 •快速的响应时间 •JEDEC的注册包装外形 |
| 规格书PDF |
