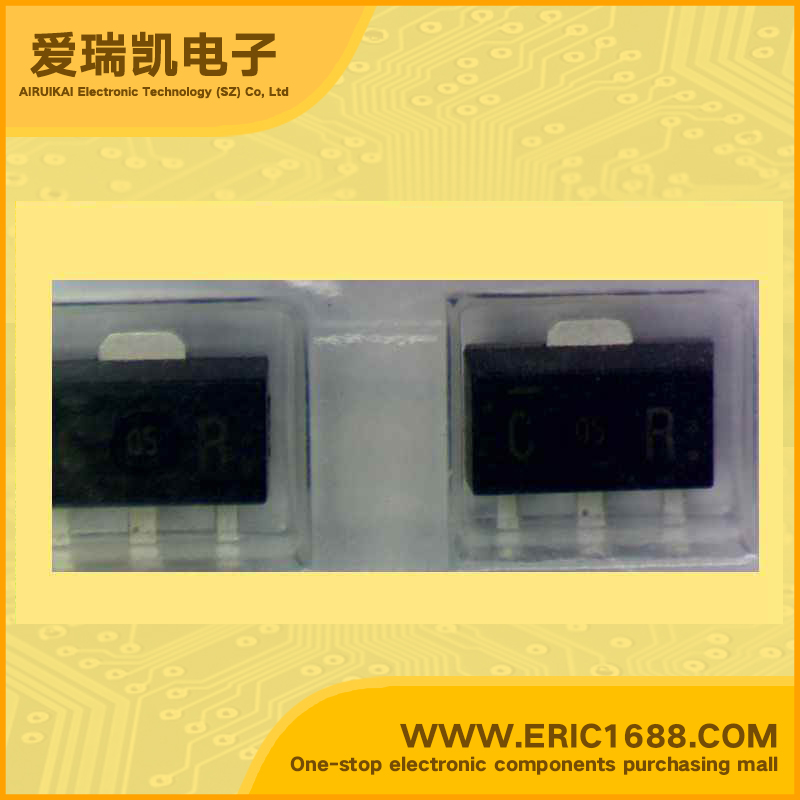

2SB0767GRL 三极管PNP -80V -0.5A 120MHZ HEF=130~220 SOT89 代码 CR
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −80V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 120MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 130~220 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -400mV/-0.4V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | PNP Silicon epitaxial planar type For low-frequency output amplification Complementary to 2SD875 Features Large collector power dissipation PC. Mini Power type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing • Low collector-emitter saturation voltage VCE(sat) • High-speed switching • S-Mini type package, allowing downsizing and thinning of the equipment and automatic insertion through the tape packing |
| 描述与应用 | PNP硅外延平面型 对于低频输出放大 互补型2SD875 特点 大集电极功耗PC。 迷你功率型封装，允许缩小设备规模和通过自动插入磁带包装 |
| 规格书PDF |
