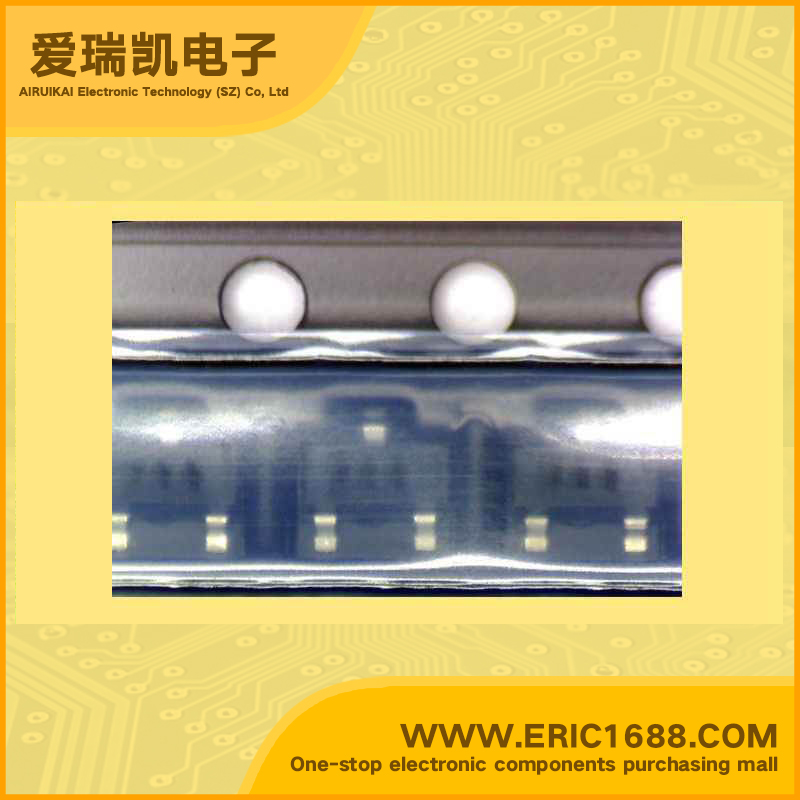

BC856AMTF PNP三极管 -80V -0.1A 150MHZ HEF=110~220 代码 9AA SOT23
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | −80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −65V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 110~220 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -250mV/-0.25V |
| 耗散功率PcPoWer Dissipation | 310mW/0.31W |
| Description & Applications | Switching and Amplifier Applications • Suitable for automatic insertion in thick and thin-film circuits • Low Noise: BC859, BC860 • Complement to BC846 ... BC850 |
| 描述与应用 | 开关和放大器应用 •适用于自动插入厚薄膜电路 •低噪声：BC859，BC860 •补BC846... BC850 |
| 规格书PDF |
