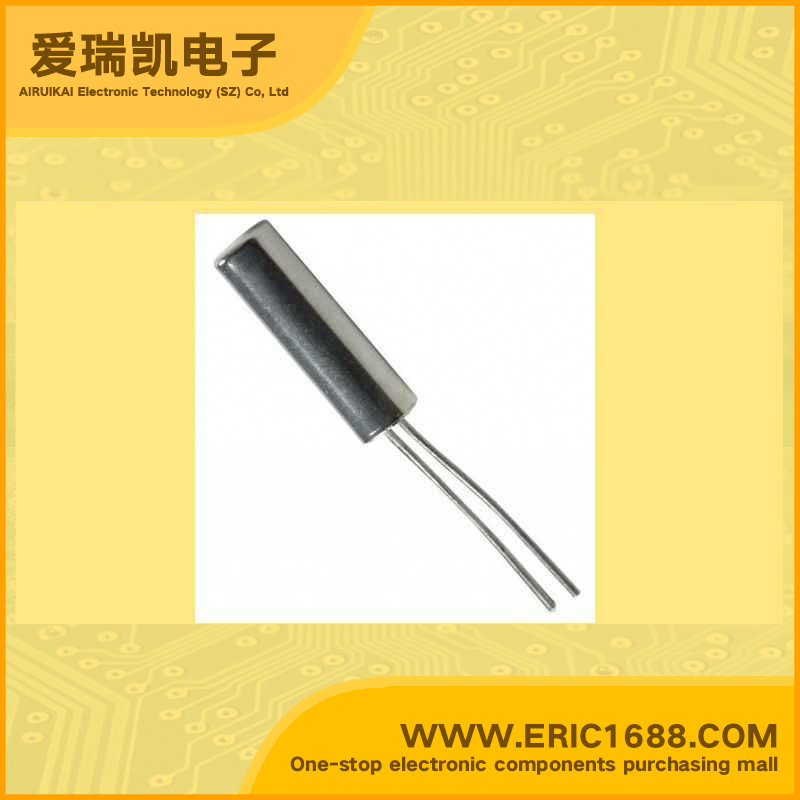

NC38LF-327 圆柱晶体谐振器（可按参数要求定制）
| 频率范围（F0） Frequency Range(F0) |
|
||
| 振荡模式 Overtone Order |
|
||
| 频率公差 Frequency Tolerance(at 25℃) |
±30ppm Typical(tighter tolerance is available) | ||
| 频率温度特性 Frequency Temperature Stability |
±30ppm Typical(tighter tolerance is available) | ||
| 工作温度范围 Operating Temperature Range |
-20℃~+70℃ （other operating range is available） | ||
| 储存温度范围 Storage Temperature Range |
-40℃~+80℃ | ||
| 静态电容 Shunt Capacitance(C0) |
7.0 pf Max | ||
| 等效电阻 Equivalent Series Resistance |
refer to ESR Table | ||
| 驱动电平 Drive Level |
0.01uw~100uw |
||
| 负载电容 Load Capacitance |
8pf~32pf | ||
| 老年化 Ageing(at 25℃) |
3ppm/year Max | ||
| 描述与应用 Description & Applications |
等效电阻ESR
Fundamental
| 3.700~6.000MHz | 150Ω Max |
| 6.001~12.000MHz | 80Ω Max |
| 12.001~30.000MHz | 80Ω Max |
3rd Overtone
| 30.001~55.000MHz | 80Ω Max |
