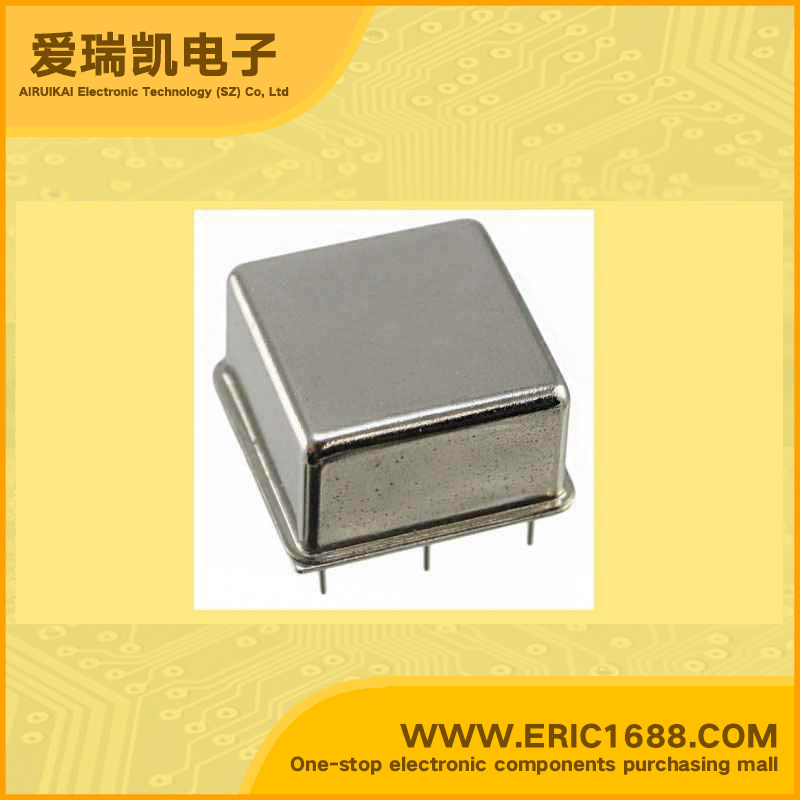

OH100-50503CF DIP OCXO恒温晶体振荡器（可按参数要求定制）
| 频率范围（F0） Frequency Range(F0) |
5.000 000MHz~40.000 000MHz | ||||||||||||
| 标准频率(MHz) Normal Frequency (MHz) |
10，12.8，13，15.36，16.384，19.2 ，19.44，19.68，20，25.6，30.72，32.768，38.88 | ||||||||||||
| 频率稳定度 Frequency Stability |
|
||||||||||||
| 工作温度 Operating Temperature |
-20℃~+70℃ （other operating range is available） | ||||||||||||
| 老化率 (at 25℃) Aging |
1.0ppm / first year (Ta=Room Ambient) | ||||||||||||
| 储存温度 Storage Temperature Range |
-45℃~+85℃ | ||||||||||||
| 工作电压 Power supply voltage |
5.0V(3.3V、9.0V、12.0V also available) | ||||||||||||
| 功耗 Consumption |
3.0W Max (start) 1.5W Max (operating) | ||||||||||||
| 输出波形 Output |
|
||||||||||||
| 相位噪声 Phase |
-145 dBc (10MHz at 1KHz) | ||||||||||||
| 频率控制 Control function |
Refer to Dimensions (customer dimension is welcome) | ||||||||||||
| 描述与应用 Description & Applications |
| 规格书PDF |
