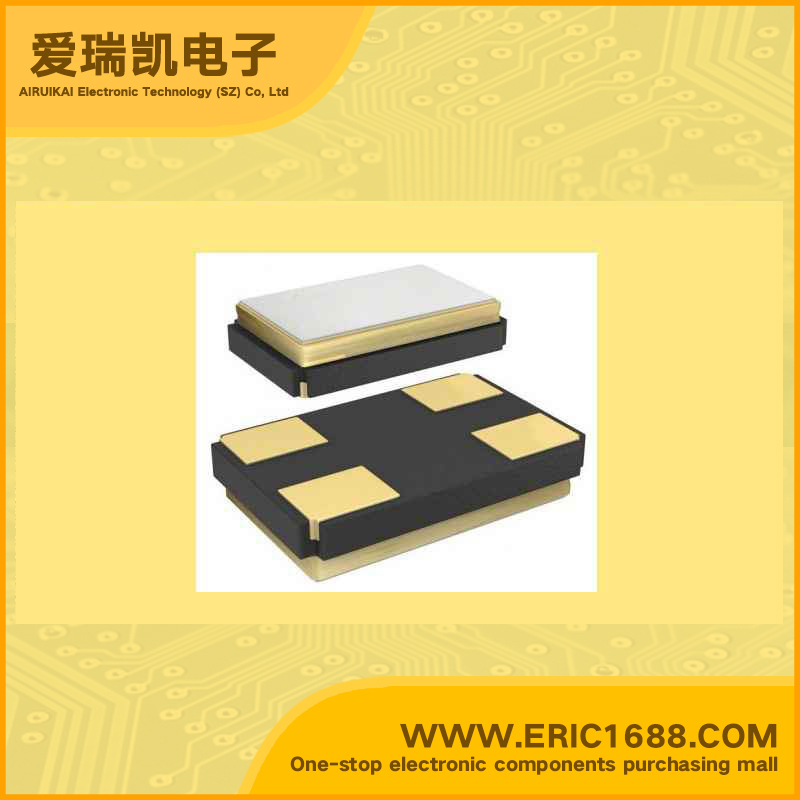

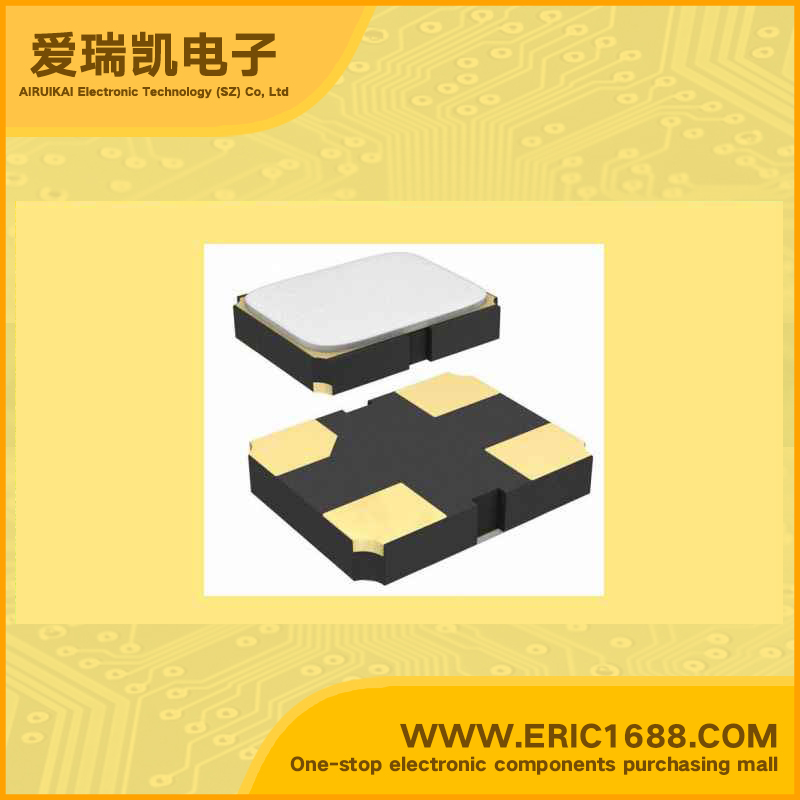

汽车级晶振 高稳频率器件（可按参数要求定制）
| 频率范围（F0） Frequency Range(F0) |
13.000MHz~48.000MHz |
| 振荡模式 Overtone Order |
Fundamental |
| 频率公差 Frequency Tolerance(at 25℃) |
±20ppm Typical(tighter tolerance is available) |
| 频率温度特性 Frequency Temperature Stability |
±20ppm Typical(tighter tolerance is available) |
| 工作温度范围 Operating Temperature Range |
-20℃~+70℃ （other operating range is available） |
| 储存温度范围 Storage Temperature Range |
-40℃~+125℃ |
| 静态电容 Shunt Capacitance(C0) |
4.0 pf Max |
| 等效电阻 Equivalent Series Resistance |
refer to ESR Table |
| 驱动电平 Drive Level |
0.01uw~100uw |
| 负载电容 Load Capacitance |
8pf~32pf |
| 老年化 Ageing(at 25℃) |
3ppm/year Max |
| 描述与应用 Description & Applications |
等效电阻ESR
Fundamental
| 13.000~19.999MHz | 100Ω Max |
| 20.000~26.999MHz | 60Ω Max |
| 27.000~48.000MHz | 40Ω Max |
