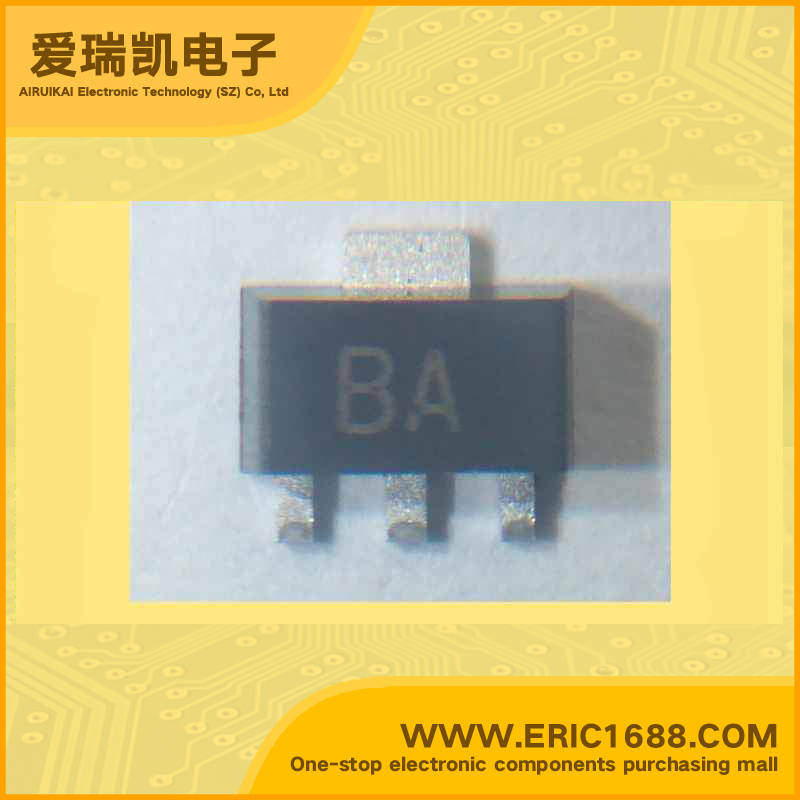

BCX54TA NPN 三极管 45V 1A 150MHZ 40~250 0.5V SOT-89 MARKING/标记BA

热销商品

产品描述



集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO)  45V
集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO)  45V
集电极连续输出电流ICCollector Current(IC) 1A
截止频率fTTranstion Frequency(fT) 150MHZ
直流电流增益hFEDC Current Gain(hFE)  40~250
管压降VCE(sat)Collector-Emitter SaturationVoltage 0.5V
耗散功率PcPoWer Dissipation 1W
Description & Applications • Ic = 1A Continuous Collector Current  • Low Saturation Voltage VCE(sat) < 500mV @ 0.5A  • Gain groups 10 and 16  • Epitaxial Planar Die Construction  • Complementary PNP types: BCX51, 52 and 53  • Lead-Free, RoHS Compliant (Note 1)  • Halogen and Antimony Free. “Green” Devices (Note 2)  • Qualified to AEC-Q101 Standards for High Reliability  • Medium Power Switching or Amplification Applications  • AF driver and output stages
描述与应用 •IC=1A的连续集电极电流 •低饱和电压VCE(sat)的<500mV的@0.5A •增益组10和16 •外延平面小片建设 •互补PNP类型:BCX51,52和53 •无铅,符合RoHS(注1) •无卤素和无锑。 “绿色”设备(注2) •符合AEC-Q101标准的高可靠性 •中等电源开关或放大应用 •AF驱动器和输出级
规格书PDF
