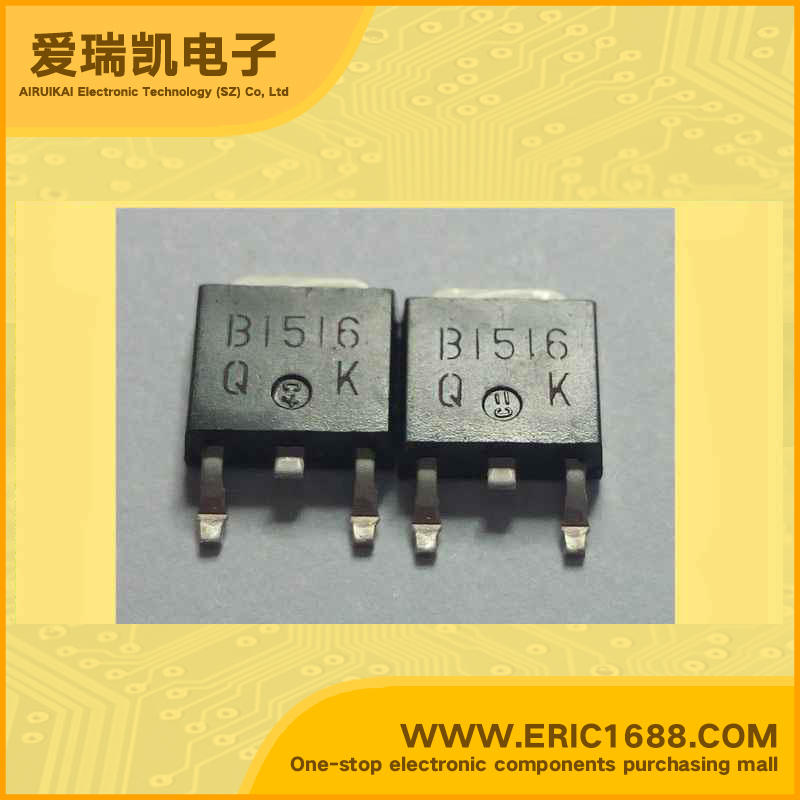

2SB1516 PNP三极管 -80V -3A 50MHz 390~1800 -1000mV/-1V TO-252/DPAK marking/标记 B1516 低频/低功耗/高直流电流放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流ICCollector Current(IC) | -3A |
| 截止频率fTTranstion Frequency(fT) | 50MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 390~1800 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -1000mV/-1V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | Triple diffused planar PNP Silicon transistor Low frequency ,power amplifier Features High DC current Amp Low VCE Large collector power loss Wide SOA |
| 描述与应用 | 三重扩散平面PNP硅晶体管 低频，低功耗放大器 特点 高直流电流放大器 低VCE 大收藏家功率损耗 宽SOA |
