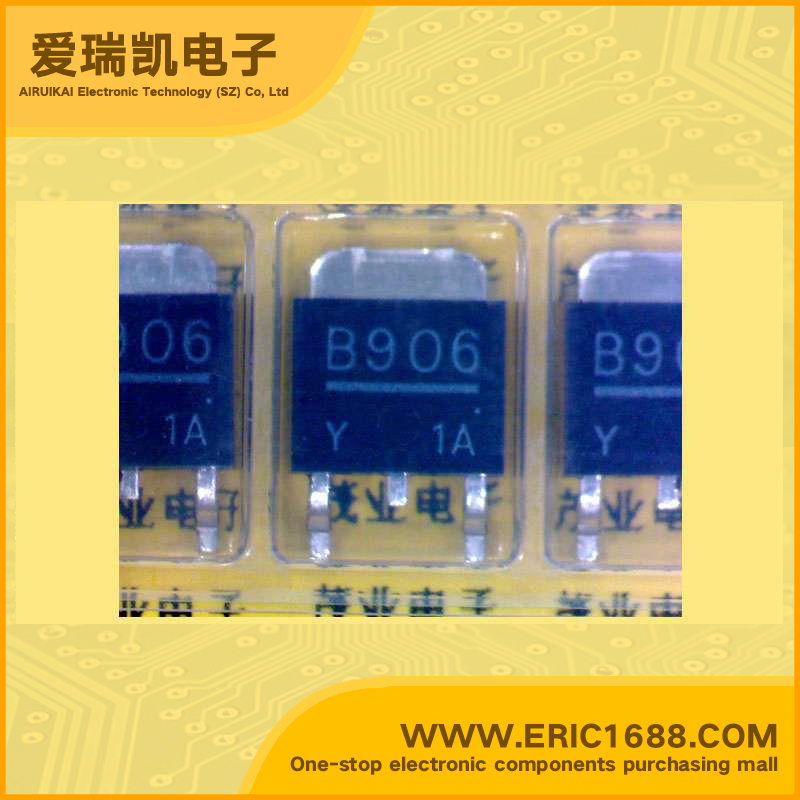

2SB906-Y PNP三极管 -60V -3A 9MHz 100~200 -1000mV/-1V TO-252/DPAK marking/标记 B906 音频功放
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流ICCollector Current(IC) | -3A |
| 截止频率fTTranstion Frequency(fT) | 9MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -1000mV/-1V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | audio frequency power amplifier application low collector saturation voltage； high power dissipation； complementary to 2SD1221 |
| 描述与应用 | 音频功放中的应用 集电极饱和电压低; 高功耗; 2SD1221互补 |
| 规格书PDF |
