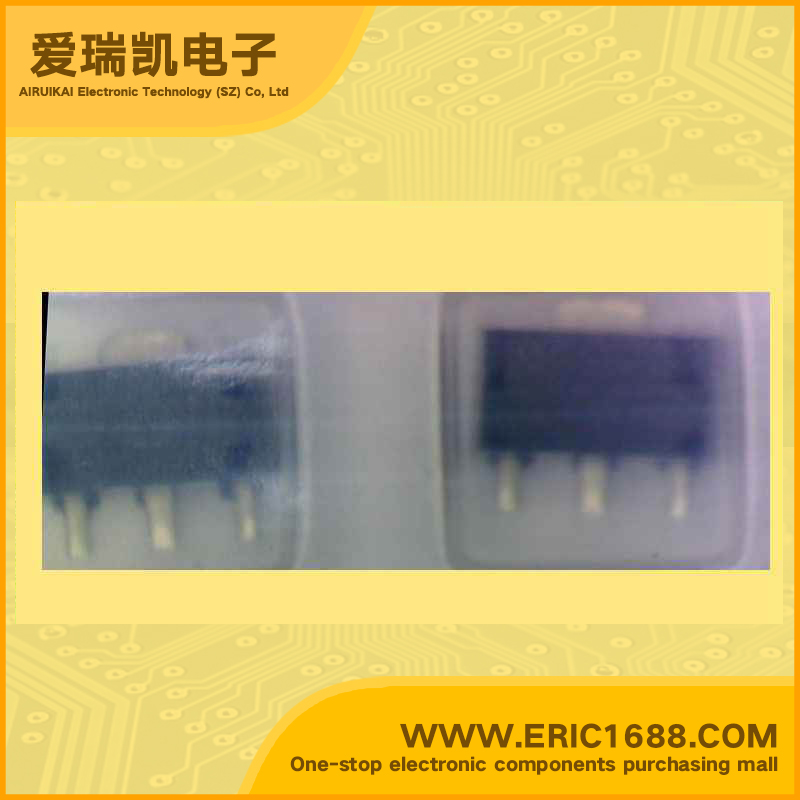

2SC3439 NPN三极管 30V 1.5A 130MHz 900~1800 500mV/0.5V SOT-89 marking/标记 HJ 高增益电机驱动
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流ICCollector Current(IC) | 1.5A |
| 截止频率fTTranstion Frequency(fT) | 130MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 900~1800 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 500mW/0.5W |
| Description & Applications | NPN Silicon epitaxial Transistors for small type motor plunger drive applications Complementary to 2SA1369 Features High hFE High collector current High VCE High collector dissipation Small package for easy mounting |
| 描述与应用 | NPN硅外延晶体管 小型马达柱塞驱动应用 互补型2SA1369 特点 高HFE 高集电极电流 高VCE 高集电极耗散 易于安装的小型封装 |
| 规格书PDF |
