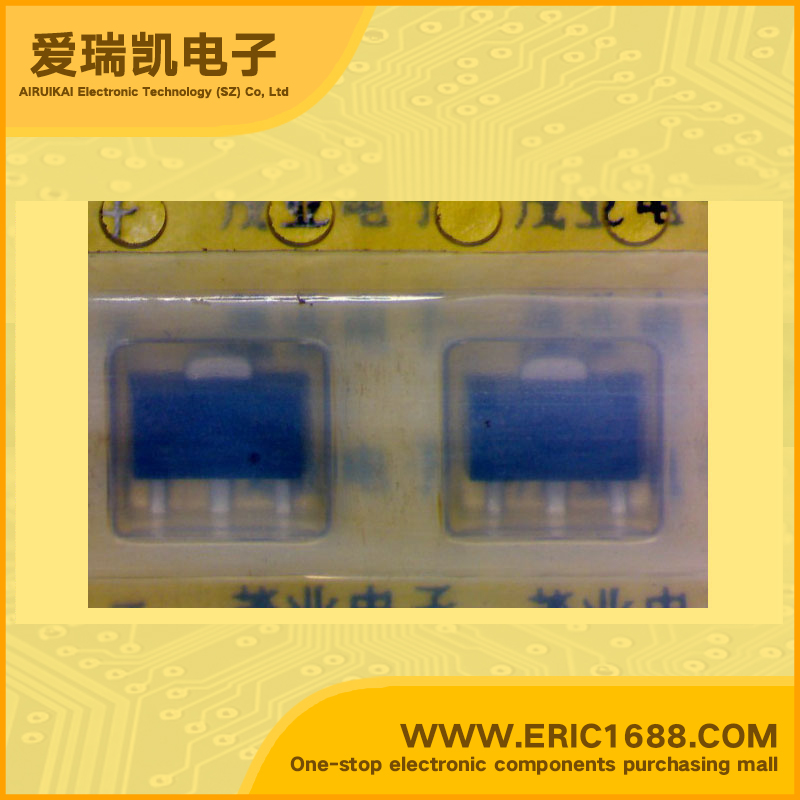

2SC3443 NPN三极管 20V 2A 80MHz 250~500 300mV/0.3V SOT-89 marking/标记 BF 高电流驱动应用
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 16V |
| 集电极连续输出电流ICCollector Current(IC) | 2A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 250~500 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 500mW/0.5W |
| Description & Applications | NPN Silicon epitaxial Transistors for high current drive applications Complementary to 2SA1363 Features High hFE High collector current High collector to dissipation Small package for mounting Applications Small type motor drive for VCR,relay drive,power supply |
| 描述与应用 | NPN硅外延晶体管 为高电流驱动应用 互补2SA1363 特点 高HFE 高集电极电流 高集电极耗散 小安装包 应用 录像机小型电机驱动器，继电器驱动器，电源供应器 |
